Product Description
Ab Chance 4012 2T Chain Hoist New Chance 4012 2T Chain Hoist New
Link-Chain Style
A Strong Link To Reliable Performance.
Construction
Proof-Tested And Factory Operated At 150% Of Capacity
Rating
Lightweight, High-Strength Handle And Sheave Housings
Are Heat-Treated Aluminum
All Working Parts Are Fully Enclosed In The Housing Unit
For Operator Safety
High-Strength Alloy Steel Chain Is Polished For Smooth
Action And Low Wear
Load Hooks Are Forged Steel With Automatic Spring-Loaded
Latches

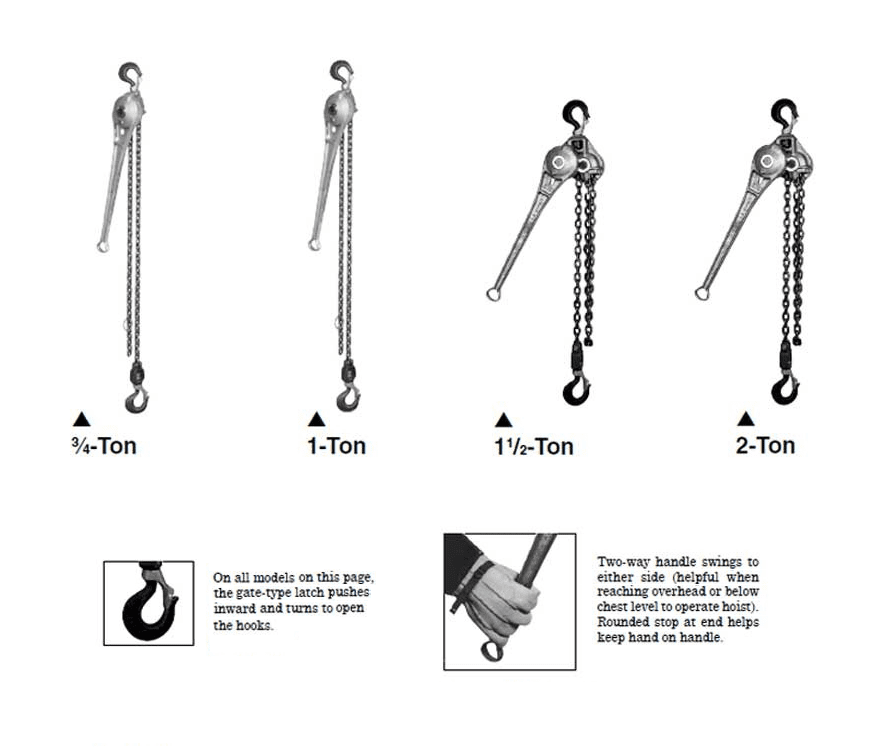

Two-Way Handle Allows For Easy Access And Operation
Overhead Or Below Chest Level
Rounded Stop On Handle End Helps To Ensure Firm
Operator Grip.
Operation
Easy Hook-Up And Chain Release To Freewheel, Under Noload
Conditions
Controls Automatically Lock When Hoist Is Pulling Load
Two Simple Levers – Shift Key For Up And Down On Top Of
Housing, And Release Key In Handle Recess – Are Easy To
Switch, Even Wearing Gloves
Easily Ratchets One Or Two Clicks Per Stroke In Up Or Down
Mode
Choose Quick Speed, Or Full- Or Half-Link Rate For Added
Accuracy
Ratchet Handle Swings To Either Side For Cramped Quarters
And Push Or Pull Stroke Operation
Top And Bottom Hooks Swivel 360° For Rope Unwinding Or
Stranded Cable Under Tension
Specifications
Each Unit Comes With Illustrated Operating Manual, Including
Complete Parts List
Lifetime Oil-Impregnated Bronze-Sleeve Bearings Require No
Additional Lubrication
Pliers And Screwdriver Are Only Tools Needed For Maintenance
For Infrequent Repairs, Kit C3090349 Contains Minor Service
Parts Common To All Ratings
5-1/2 Ft. Standard Lift Distance
20-In. Handle/Aluminum Housing
