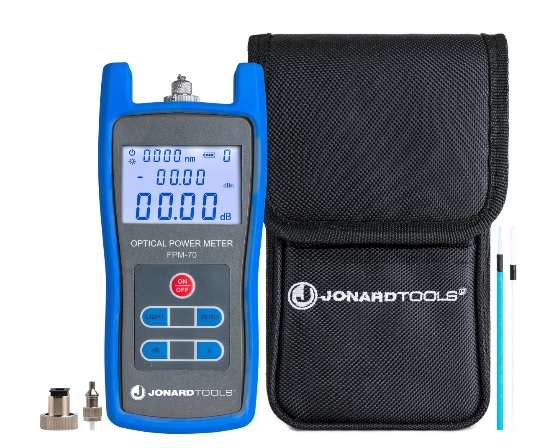

Jonard Fpm-70 Fiber Optic Power Meter (-70 To +6 Dbm) With Fc/Sc/Lc Adapters Upc 810053350478
Available*
Item # 37301994
Model # FPM-70
$264.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
POWER MTR
Fiber Optic Products
Otdr- Power Meter- Light Source- Idenitifiers- Vfl
Fiber Power Meter
JONARD INDUSTRIES CORP
Fiber Optic Power Meter
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Jonard Fpm-70 Fiber Optic Power Meter (-70 To +6 Dbm) With Fc/Sc/Lc Adapters Upc 810053350478
Jonard Fpm-70 Fiber Optic Power Meter (-70 To +6 Dbm) With Fc/Sc/Lc Adapters Upc 810053350478
Primarily Used In Long Haul Applications, This Fiber Optic Power Meter Is Perfect For Measuring Both The Absolute Optical Power And Relative Power Loss In Fiber Optic Cables. This Power Meter Features The Following:
Power Measurement Range Of -70 Dbm To +6 Dbm, Perfect For Long Distance Or Long Haul Telecom, Coax, And Fiber Optic Cables Measures A Wide Variety Of Wavelengths From 800-1650 Nm, With A Mere 0.01 Db Resolution Measures 6 Preset Calibrated Wavelengths With High Precision To Determine Absolute Or Relative Power Special Function Of The Unit Allows The Device To Be Manually Calibrated As Needed Includes Fc And Sc Adapters To Connect To Pc/Upc/Apc Fc And Sc Connectors Also Includes An Lc Adapter To Connect To Pc/Upc Lc Connectors Led Screen Is Backlit For Viewing In Low Light Locations And A 10 Minute Auto-Off Helps Preserve Battery Life Dust-Proof Button Design And Shatter-Resistant Sleeve Protect The Tool To Last A Lifetime Includes:
Fiber Optic Power Meter (-70 Dbm To +6 Dbm) Fc Adapter (Pc/Upc/Apc) Sc Adapter (Pc/Upc/Apc) Lc Adapter (Pc/Upc) (2) Cleaning Swabs Protective Cover Nylon Carry Case (3) Aa Batteries (Required For Operation) Instruction Manual
Specifications Connector Types Fc, Sc (Apc/Pc/Upc) & Lc (Pc/Upc)
Calibrated Wavelengths (Nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type Ingaas
Measurement Range -70 Dbm To +6 Dbm
Single Mode Range 980, 1310, 1490, 1550, 1625, 1650 Nm, = ± 0.25 Db
Multi Mode Range 850, 1300 Nm, = ± 0.8 Db
Resolution 0.01 Db
Operating Time = 130 Hours
Battery Type (3) Aa Batteries
Dimensions 7" X 3.25" X 1.5" (17.78 Cm X 8.26 Cm X 2.54 Cm)
Weight 1.5 Lb (681 G)
Upc # 810053350478
Jonard Fpm-70 Fiber Optic Power Meter (-70 To +6 Dbm) With Fc/Sc/Lc Adapters Upc 810053350478
Primarily Used In Long Haul Applications, This Fiber Optic Power Meter Is Perfect For Measuring Both The Absolute Optical Power And Relative Power Loss In Fiber Optic Cables. This Power Meter Features The Following:
Power Measurement Range Of -70 Dbm To +6 Dbm, Perfect For Long Distance Or Long Haul Telecom, Coax, And Fiber Optic Cables Measures A Wide Variety Of Wavelengths From 800-1650 Nm, With A Mere 0.01 Db Resolution Measures 6 Preset Calibrated Wavelengths With High Precision To Determine Absolute Or Relative Power Special Function Of The Unit Allows The Device To Be Manually Calibrated As Needed Includes Fc And Sc Adapters To Connect To Pc/Upc/Apc Fc And Sc Connectors Also Includes An Lc Adapter To Connect To Pc/Upc Lc Connectors Led Screen Is Backlit For Viewing In Low Light Locations And A 10 Minute Auto-Off Helps Preserve Battery Life Dust-Proof Button Design And Shatter-Resistant Sleeve Protect The Tool To Last A Lifetime Includes:
Fiber Optic Power Meter (-70 Dbm To +6 Dbm) Fc Adapter (Pc/Upc/Apc) Sc Adapter (Pc/Upc/Apc) Lc Adapter (Pc/Upc) (2) Cleaning Swabs Protective Cover Nylon Carry Case (3) Aa Batteries (Required For Operation) Instruction Manual
Specifications Connector Types Fc, Sc (Apc/Pc/Upc) & Lc (Pc/Upc)
Calibrated Wavelengths (Nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type Ingaas
Measurement Range -70 Dbm To +6 Dbm
Single Mode Range 980, 1310, 1490, 1550, 1625, 1650 Nm, = ± 0.25 Db
Multi Mode Range 850, 1300 Nm, = ± 0.8 Db
Resolution 0.01 Db
Operating Time = 130 Hours
Battery Type (3) Aa Batteries
Dimensions 7" X 3.25" X 1.5" (17.78 Cm X 8.26 Cm X 2.54 Cm)
Weight 1.5 Lb (681 G)
Upc # 810053350478
