Product Description

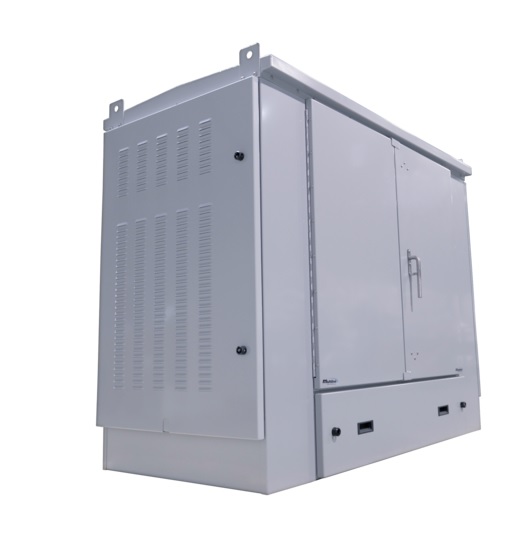

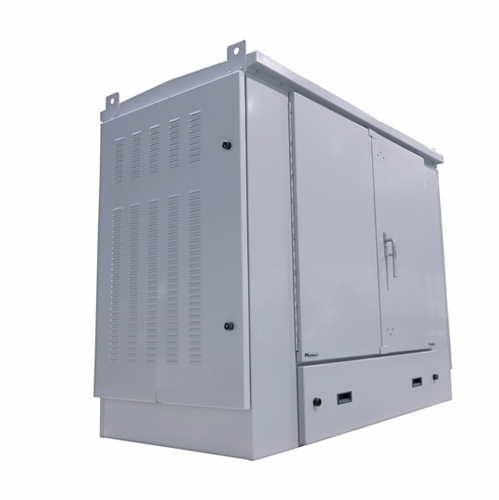

Multilink 030-155-20 4 Bay Otn Cabinet With Battery Drawer, 13K Btu A/C, Solar Shield, Gray Otn
Multilink 030-155-20
4 Bay Otn Cabinet With Battery Drawer, 13K Btu A/C, Solar Shield, Gray Otn Cabinet
4 Bay Otn Cabinet - With Battery Tray, 13,000 Btu A/C And Solar Shield
030-155-20
With Battery Tray, 13,000 Btu A/C And Solar Shield
General Specifications
Powering 60 Amp Generator Hook-Up Mac Load Center W/ Gfi Outlets 220V Outlet
Hardware Type 304 Stainless Steel
Door
3 Point Latch
Piano Hinge
Light Control Switch
Wind Stop
Cable Entrance Large Openings On Bottom Of Power And Slack Storage Ends
Heating & Cooling 8,000-12,000 Btu Air Conditioning W/ Integrated Heater Heat Exchangers Available As Options
Uom Each
Physical Specifications
Width 78.5"
Height 62.5"
Depth 36.5"
Weight 960 Lbs
Color Gray
Main Body 1/8” Aluminum
Finish Polyester Powder Coat
Grounding All Components Are Grounded To The Main Copper Bus Bar
Mechanical Specifications
Mounting Ground
Rack Specifications
Rack Width 19" - 23"
Rack Units
47Ru
95Ru
142Ru
Rack Threads 10 - 32 Eia/Tia Spacing
