Product Description

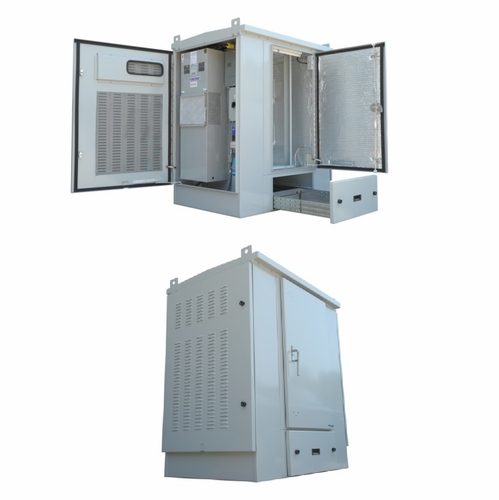

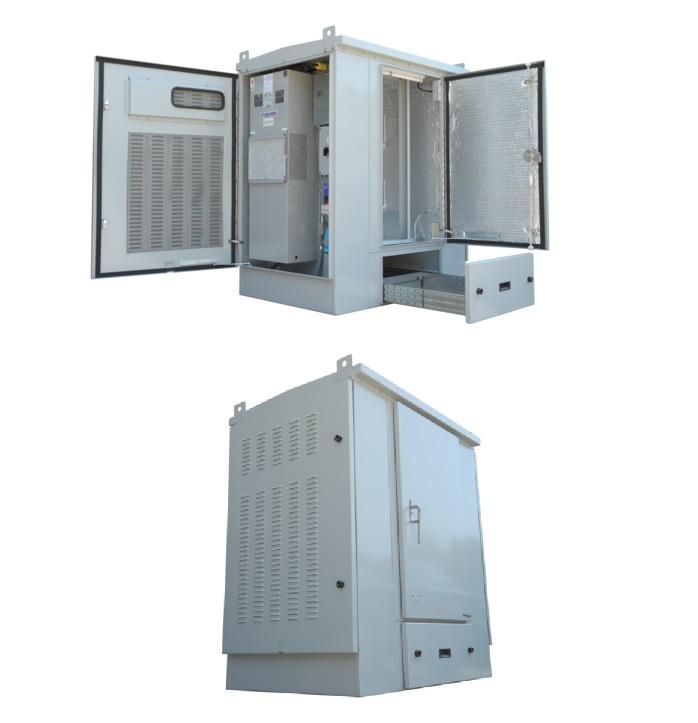

Multilink 14002-2 2 Bay Otn Cabinet With Battery Drawer, 8K Btu A/C, Gray Otn Cabinet
Multilink 14002-2
2 Bay Otn Cabinet With Battery Drawer, 8K Btu A/C, Gray Otn Cabinet
2 Bay Otn Cabinet
14002-2
With Battery Tray - 8,000 Btu A/C
General Specifications
Heating & Cooling 8,000-12,000 Btu Air Conditioning W/ Integrated Heater Heat Exchangers Available As Options
Uom Each
Powering 60 Amp Generator Hook-Up Mac Load Center W/ Gfi Outlets 220V Outlet
Hardware Type 304 Stainless Steel
Door
3 Point Latch
Piano Hinge
Light Control Switch
Wind Stop
Cable Entrance Large Openings On Bottom Of Power And Slack Storage Ends
Physical Specifications
Width 54.5"
Height 62.5"
Depth 36.5"
Weight 760 Lbs
Color Gray
Main Body 1/8" Aluminum
Finish Polyester Powder Coat
Grounding All Components Are Grounded To The Main Copper Bus Bar
Mechanical Specifications
Mounting Ground
Rack Specifications
Rack Width 19" - 23"
Rack Units
47Ru
95Ru
142Ru
Rack Threads 10 - 32 Eia/Tia Spacing
