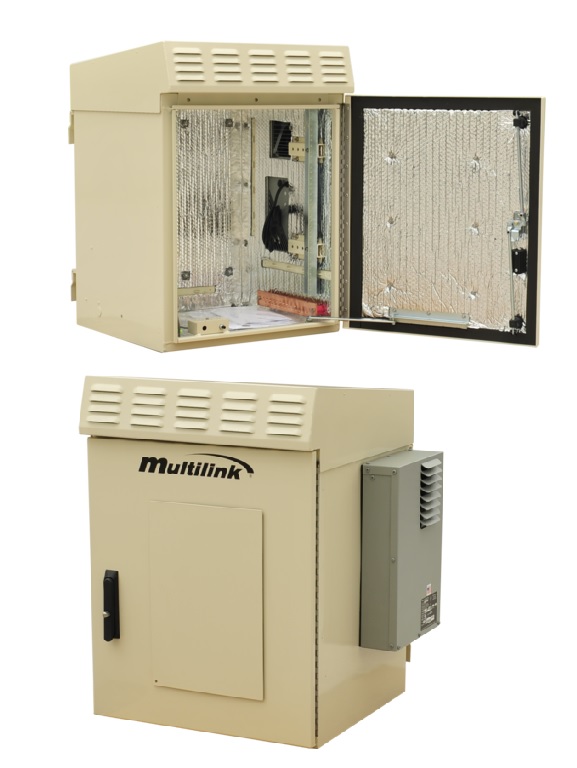

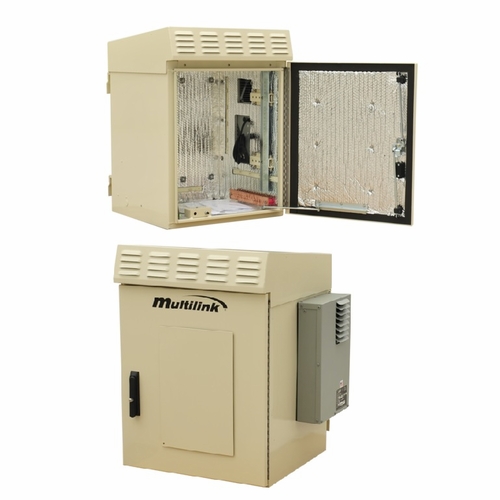

Multilink 030-180-45 12Ru Wall/Unistrut Mount W/Heat Exchanger Backhaul 12Ru W/Heat Exchanger
Multilink 030-180-45
12Ru Wall/Unistrut Mount W/Heat Exchanger Backhaul 12Ru W/Heat Exchanger
12Ru Wall/Unistrut Mount W/ Heat Exchanger
030-180-45
General Specifications
Hardware Stainless Steel
Door
3 Point Latch
Piano Hinge
Wind Stop
Heating & Cooling 120V Ac Heat Exchanger
Powering 125V Duplex Receptacle
Uom Each
Cable Entrance
4 X(Ø1.5 X 2.25" Dual Stage Knockouts
1 X(Ø4.00") Single Stage Knockout
Physical Specifications
Width 25.8
Height 31"
Depth 24.8"
Weight 105 Lbs
Color Beige
Main Body Aluminum
Finish Polyester Powder Coat
Mechanical Specifications
Mounting
Wall
Unistrut
Safety Standard Specifications
Standards Nema 250 3R
Rack Specifications
Rack Width 19"
Rack Units 12Ru
Rack Threads 10 - 32 Eia/Tia Spacing
