Product Description

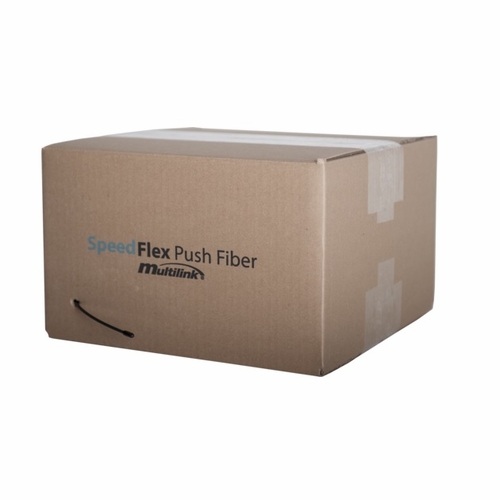

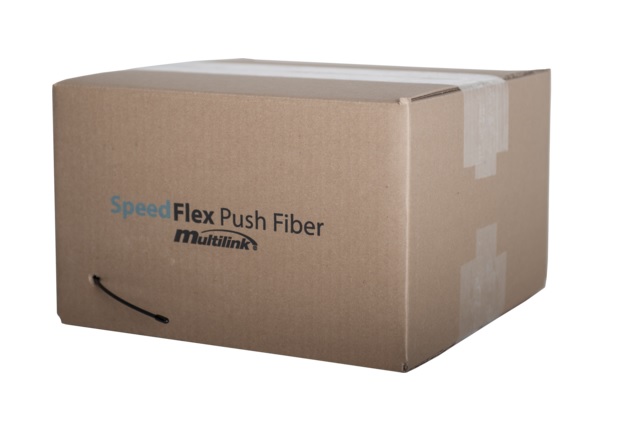

Multilink 066-160-32 Speedflex 1 Fiber 3.0Mm Orange (Burial) 1000Ft Payout Box Speedflex
Multilink 066-160-32
Speedflex 1 Fiber 3.0Mm Orange (Burial) 1000Ft Payout Box Speedflex
Bulk Fiber, 1 Fiber Speedflex™, Orange (Burial), 1000 Ft. Contractor Box
066-160-32
Multilink’S Speedflex™ Push Fiber Is A Strong But Flexible Fiber Cable Designed To Be Installed In Rigid Yet Adaptable Conduit Or To Be Stapled Directly To The Wall. With The Ability To Route 1 Or 2 Fibers, Multilink’S Speedflex Push Fiber Is Unique To The Push/Pull Fiber Industry. The 900µm Bend-Insensitive Fiber Is Properly Color Coded To Eia/Tia Standards. Speedflex™ Comes In A 100 Ft. Payout Box Or 1000 Ft. Contractor Box And Is Pushable Up To 1000 Ft. Speedflex™ Comes With Printed Measurements So You Always Know How Much You Have Left And Is Available With A Factory Terminated Connector Upon Request.
General Specifications
Bend Radius 10Mm
Packaging/Length 1000 Ft. Contractor Box
Nominal Outer Diameter 3.0Mm
Jacket Type Uv Stablized Rigid Pvc
Application
General Building Applications
Indoor Horizontal And Vertical
Product Push Fiber
Jacket Rating Ul/Ce Listed, Ul94
Outer Jacket Color Orange
Fiber Buffer Color Blue
Jacket Bend Radius 30Mm
Fiber Count 1
General Specifications
Installation Temperature Range -30°C To 75°C
Environment Burial
Fiber Specifications
Fiber Type Singlemode 9/125Um Tight Buffered Bend Insensitive G657D, G657 A1
Fiber Category Singlemode (Os2)
Environmental Specifications
Storage Temperature Range -40°C To 70°C (-40°F To 158°F)
Operating Temperature -40°C To +70°C
Safety Standard Specifications
Safety Standard
Ul 1651
Csa 22.2 #232
Gr-20 Compliant
Designed To Gr-3155
