| Generic | Class | Group | Type | Manufacturer | LOT |
| PATCHCORD | Fiber Optic Products | Fiber Optic Infrastructure | Fiber Patch Cables | MULTILINK | Fiber Multimode |
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

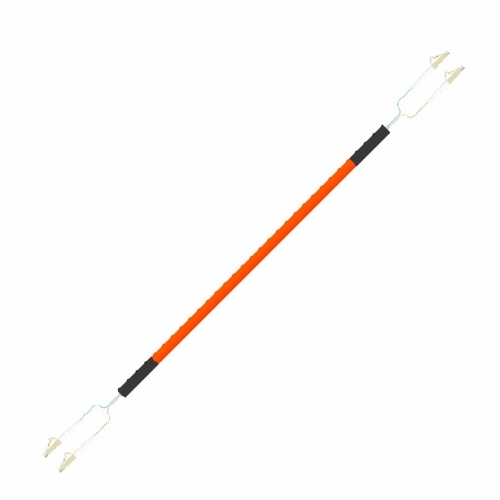

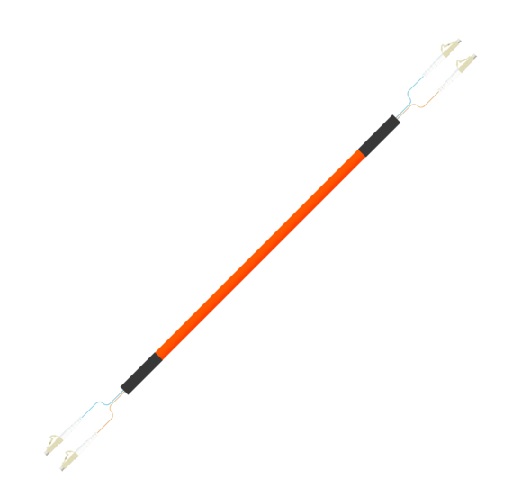

Multilink 10-6203-Ml Jumper, Duplex, Lc - Lc, 3.0Mm, 3Meter Fiber Jumpers
Multilink 10-6203-Ml Jumper, Duplex, Lc - Lc, 3.0Mm, 3Meter Fiber Jumpers
Fiber Optic Jumper 10-6203-Ml Fiber Optic Jumper, 2 Fiber Duplex Zipcord Lc/Upc To Lc/Upc, Tight Buffered Cable, Riser Rated, 3.0Mm, Multimode 50/125Um, Om2
General Specifications Fiber Count 2 Cable Assesmbly Type Duplex Fiber Nominal Outer Diameter 3.6Mm Cable Length 3 Meter Polish #1 Upc Application Riser Rated Indoor Vertical General Building Applications Flame Rating Riser Rated Ofnr Polish #2 Upc Outer Jacket Color Orange
Fiber Specifications Cable Type Multimode 3.0Mm Duplex Zipcord 50/125µm Tight Buffered Fiber Om2 Reflectance, Typical #2 < -45 Db Fiber Category Multimode (Om2) Reflectance, Typical #1 < -45 Db Insertion Loss Typical 0.20 Db
Connector Specifications Connector Type Lc/Upc Housing Material Composite Housing Color Beige Ferrule Material Zirconia Boot Color White
Multilink 10-6203-Ml Jumper, Duplex, Lc - Lc, 3.0Mm, 3Meter Fiber Jumpers
Fiber Optic Jumper 10-6203-Ml Fiber Optic Jumper, 2 Fiber Duplex Zipcord Lc/Upc To Lc/Upc, Tight Buffered Cable, Riser Rated, 3.0Mm, Multimode 50/125Um, Om2
General Specifications Fiber Count 2 Cable Assesmbly Type Duplex Fiber Nominal Outer Diameter 3.6Mm Cable Length 3 Meter Polish #1 Upc Application Riser Rated Indoor Vertical General Building Applications Flame Rating Riser Rated Ofnr Polish #2 Upc Outer Jacket Color Orange
Fiber Specifications Cable Type Multimode 3.0Mm Duplex Zipcord 50/125µm Tight Buffered Fiber Om2 Reflectance, Typical #2 < -45 Db Fiber Category Multimode (Om2) Reflectance, Typical #1 < -45 Db Insertion Loss Typical 0.20 Db
Connector Specifications Connector Type Lc/Upc Housing Material Composite Housing Color Beige Ferrule Material Zirconia Boot Color White
