Product Description
Multilink 065-561-10-Ml Pigtail, 12 Fiber, Lc/Upc, Sm, 3Meter Ribbon (Yellow) Plc Optical Splitters,
Multilink 065-561-10-Ml
Pigtail, 12 Fiber, Lc/Upc, Sm, 3Meter Ribbon (Yellow) Plc Optical Splitters
Fiber Optic Pigtail
065-561-10-Ml

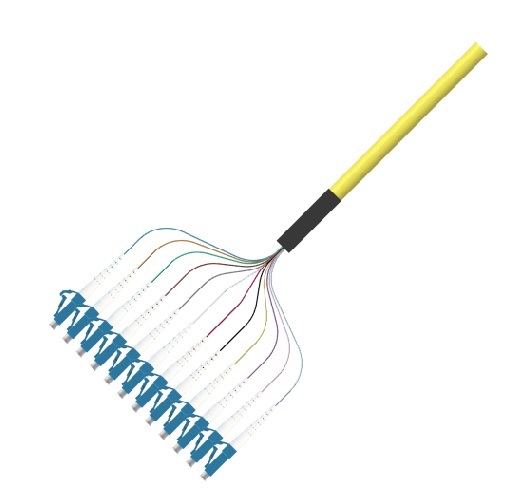

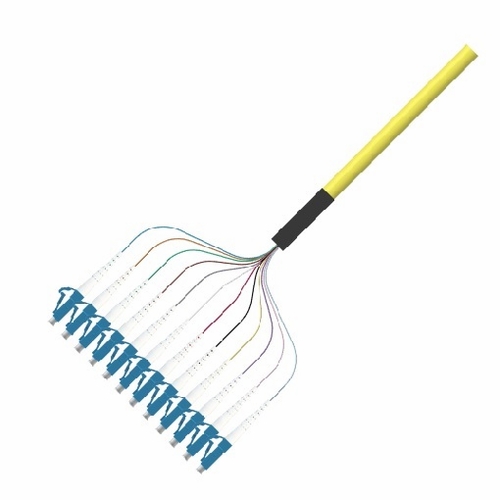

Fiber Optic Pigtail, 12 Fiber Jacketed, Lc/Upc To Stub, Ribbon Fiber, Plenum Rated, Ofnp Ft-6, Singlemode 9/125Um, Bend Insensitive, 8" Breakout
General Specifications
Nominal Outer Diameter 4.6 X 2.2Mm
Fiber Count 12
Application
Plenum Rated
Data Centers
San
Central Office
Wall Outlets
Communication Closets
Head Ends
Outer Jacket Color Yellow
Cable Length 3 Meter
Flame Rating Plenum Rated Ofnp
Cable Assesmbly Type 12 Fiber Pigtail
Fiber Specifications
Cable Type Singlemode 12 Fiber Ribbon 9/125µm Bend Insensitive G657 A1
Fiber Category Singlemode (Os1)
Insertion Loss Typical 0.12 Db
Reflectance, Typical #1 < -58 Db
Connector Specifications
Connector Type Lc/Upc
Polish Upc
Housing Color Blue
Boot Color White
Ferrule Material Zirconia
Housing Material Composite
