Product Description

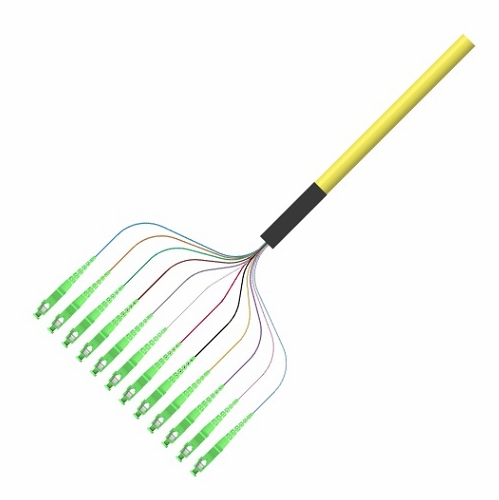

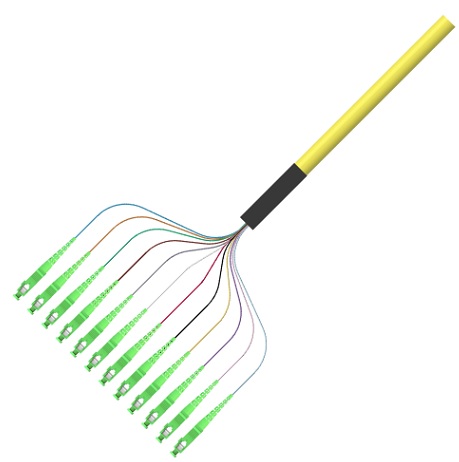

Multilink 065-395-10-Ml Pigtail, 12 Fiber, Sc/Apc, Sm, 3 Meter Ofnr (Yellow) Plc Optical Splitter
Multilink 065-395-10-Ml
Pigtail, 12 Fiber, Sc/Apc, Sm, 3 Meter Ofnr (Yellow) Plc Optical Splitter
Sc/Apc Fiber Optic Pigtail
065-395-10-Ml
Sc/Apc, 12 Fibers Jacketed, Tight Buffered Fiber, Riser Rated,
Ofnr Ft-4, Singlemode 9/125µm, Bend Insensitive, 8" Breakout
General Specifications
Outer Jacket Color Yellow
Cable Assesmbly Type 12 Fiber Pigtail
Application
Riser Rated
General Building Applications
Indoor Horizontal
Fiber Count 12
Cable Length 3 Meter
Nominal Outer Diameter 7.00Mm
Flame Rating Riser Rated Ofnr
Fiber Specifications
Cable Type Singlemode 12 Fiber Distribution 9/125µm Tight Buffered Bend Insensitive G657 A1
Fiber Category Singlemode (Os1)
Reflectance, Typical #1 < -65 Db
Insertion Loss Typical 0.12 Db
Connector Specifications
Connector Type Sc/Apc
Polish Apc
Housing Color Green
Boot Color Green
Housing Material Composite
Ferrule Material Zirconia
