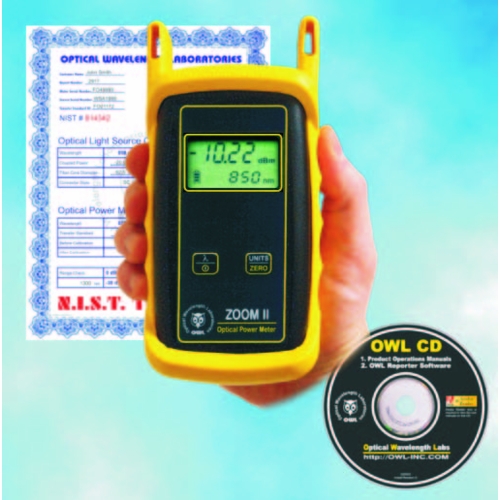

Owl Zo2Sv Silicon Zoom 2 Optical Power Meter W/Integrated Vfl With Data Storage New
Available*
Item # 53419640
Model # ZO2SV
$381.71
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

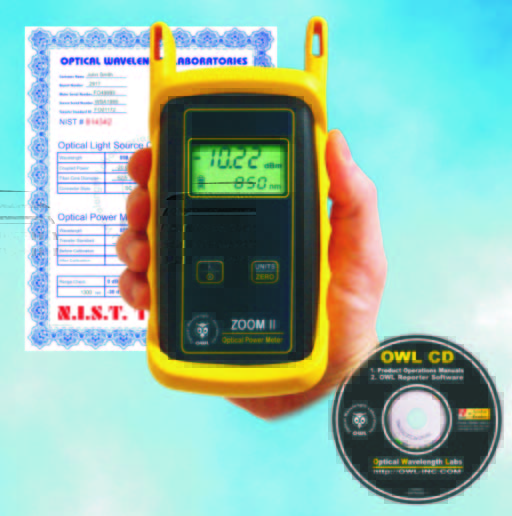

Owl Optical Wavelength Laboratories Zo2Sv Silicon Zoom 2 Optical Power Meter W/Integrated Vfl With Data Storage New
Applications Below Is A List Of Test And Measurement Applications That Can Be Performed Using The Silicon Zoom 2 Optical Power Meter. The Procedure For Each One Of These Applications Is Covered In Detail In This Manual. Active Equipment Optical Power Measurements. Active Equipment Should Be Measured Periodically For Correct Power Levels. The Transmitters In This Equipment Have A Known Power Value. The Silicon Zoom 2 Can Be Directly Attached To This Equipment Via A Patch Cord To Check Whether The Transmitter Is Within The Manufacturer’S Specified Power Range. Fiber Continuity Testing. Continuity Can Be Measured With The Silicon Zoom 2 By Placing A Calibrated Light Source On One End Of The Fiber And The Silicon Zoom 2 On The Other End. This Is Also A Simple Way To Measure The Attenuation Of The Fiber. Patch Cord Testing. Fiber Links That Are Producing Incorrect Results May Have Bad Patch Cords. The Silicon Zoom 2 Can Be Used To Test The Attenuation Of A Patch Cord To See If It Is Usable, Or Should Be Replaced. Attenuation (Optical Loss) Measurements. After A Fiber Cable Has Been Installed And Terminated, It Must Be Tested To Determine If The Fiber Is Installed According To Standards And Specifications. A Comparison Of The Actual Power Measurement And The Reference Value Determines If The Installation Will Pass Or Fail.
Description This Manual Describes The Operation Of The Silicon Zoom 2 Optical Power Meter. Zoom Stands For Zeroed Output Optical Meter. The Silicon Zoom 2 Is A Very Economical Option For Measuring The Optical Power Of Multimode Fibers At 850Nm. The Silicon Zoom 2 Is Nist Traceable, And Is Calibrated 650, 850, And 980Nm. Reference Values Used For Optical Loss Readings Are Stored For Each Of These Wavelengths. Its User-Friendly Interface Includes Two Push-Buttons: One For Power And Wavelength Selection, And One For Setting References And Toggling Between Dbm (Optical Power) And Db (Optical Loss). The Silicon Zoom 2 Includes A 2.5Mm Universal Connector, Which Is Compatible With Many Popular Fiber Connectors, Such As St, Sc, And Fc. A1.25Mm Universal Connector Port Can Be Purchased For An Additional Charge That Allows For Connection To Lc, Mu, And Other Sff Connectors. The Silicon Zoom 2 Is Ideal For Fiber Optic Professionals Who Need To Quickly Measure The Loss In Their Fiber Optic Links And Do Not Require Data Point Storage. The Silicon Zoom 2 Can Also Be Upgraded To Include Data Storage And Auto-Testing Fiber Link Certification. For An Additional Charge, The Charger Port In The Silicon Zoom 2 Can Be Replaced By A Precision-Coupled Visual Fault Locator Optimized For Fiber Optics. An Optical Ball Lens Placed Near The Laser Output Focuses The Light For Optimum Input Into Fiber Optic Cables, And Special Current-Limiting Electronics Prevents Laser Burnout (A Common Problem With Pen-Style Laser Pointers), Increasing The Life Of The Vfl.
Applications Below Is A List Of Test And Measurement Applications That Can Be Performed Using The Silicon Zoom 2 Optical Power Meter. The Procedure For Each One Of These Applications Is Covered In Detail In This Manual. Active Equipment Optical Power Measurements. Active Equipment Should Be Measured Periodically For Correct Power Levels. The Transmitters In This Equipment Have A Known Power Value. The Silicon Zoom 2 Can Be Directly Attached To This Equipment Via A Patch Cord To Check Whether The Transmitter Is Within The Manufacturer’S Specified Power Range. Fiber Continuity Testing. Continuity Can Be Measured With The Silicon Zoom 2 By Placing A Calibrated Light Source On One End Of The Fiber And The Silicon Zoom 2 On The Other End. This Is Also A Simple Way To Measure The Attenuation Of The Fiber. Patch Cord Testing. Fiber Links That Are Producing Incorrect Results May Have Bad Patch Cords. The Silicon Zoom 2 Can Be Used To Test The Attenuation Of A Patch Cord To See If It Is Usable, Or Should Be Replaced. Attenuation (Optical Loss) Measurements. After A Fiber Cable Has Been Installed And Terminated, It Must Be Tested To Determine If The Fiber Is Installed According To Standards And Specifications. A Comparison Of The Actual Power Measurement And The Reference Value Determines If The Installation Will Pass Or Fail.
Description This Manual Describes The Operation Of The Silicon Zoom 2 Optical Power Meter. Zoom Stands For Zeroed Output Optical Meter. The Silicon Zoom 2 Is A Very Economical Option For Measuring The Optical Power Of Multimode Fibers At 850Nm. The Silicon Zoom 2 Is Nist Traceable, And Is Calibrated 650, 850, And 980Nm. Reference Values Used For Optical Loss Readings Are Stored For Each Of These Wavelengths. Its User-Friendly Interface Includes Two Push-Buttons: One For Power And Wavelength Selection, And One For Setting References And Toggling Between Dbm (Optical Power) And Db (Optical Loss). The Silicon Zoom 2 Includes A 2.5Mm Universal Connector, Which Is Compatible With Many Popular Fiber Connectors, Such As St, Sc, And Fc. A1.25Mm Universal Connector Port Can Be Purchased For An Additional Charge That Allows For Connection To Lc, Mu, And Other Sff Connectors. The Silicon Zoom 2 Is Ideal For Fiber Optic Professionals Who Need To Quickly Measure The Loss In Their Fiber Optic Links And Do Not Require Data Point Storage. The Silicon Zoom 2 Can Also Be Upgraded To Include Data Storage And Auto-Testing Fiber Link Certification. For An Additional Charge, The Charger Port In The Silicon Zoom 2 Can Be Replaced By A Precision-Coupled Visual Fault Locator Optimized For Fiber Optics. An Optical Ball Lens Placed Near The Laser Output Focuses The Light For Optimum Input Into Fiber Optic Cables, And Special Current-Limiting Electronics Prevents Laser Burnout (A Common Problem With Pen-Style Laser Pointers), Increasing The Life Of The Vfl.
