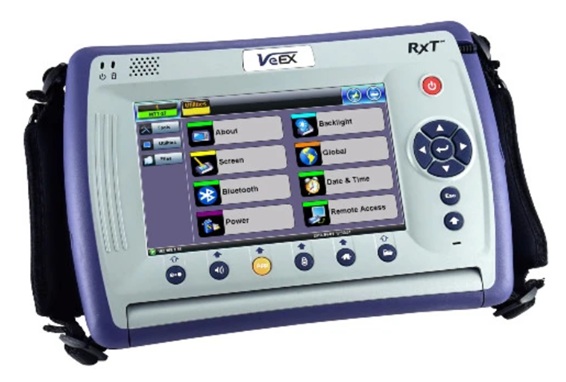

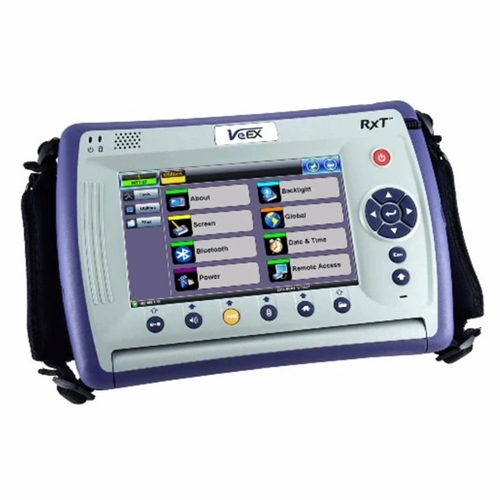

Product Description
Modern Test Platform, With A Broad Range Of Available Test Modules Covering Access (Copper And Fiber), Metro, Transport And Core Technologies, Including Dwdm
Application-Oriented Gui
Gui Familiarity Across Different Test Modules And Other Veex Products Reduces The Learning Curve
View Test Results And Create Detailed Reports By Region, Area, System, And Technician, Using R-Server Centralized Management
Enables All Jobs To Be Completed Correctly The First Time
Multi-Technology: Datacom, Fiber Optics, Wdm, Dsn/Pdh, Sonet/Sdh, Otn, Ethernet, Fibre Channel, Cpri/Obsai; From 64K To 400Gbps
Expand Test Functions With A Growing List Of Test Modules
Future-Proof Cost-Effective Platform
Test Set Connectivity Via Ethernet Management Interface, Wifi, Bluetooth®, For Back Office Applications, Workflow Optimization And Remote Access
User Defined Test Profiles And Pass/Fail Thresholds
Fast And Efficient Test Result Transfer To Usb Memory Stick, Pc Or Tablets
Ez-Remote™ For Remote Testing/Monitoring, Assistance And Training Across Internet Connections
Veexpress™ For License Management And Software Updates
Ultra-High Capacity Field-Exchangeable Li-Ion Battery Pack Extends Testing Time
Optical
Cwdm Wavelengths Per Itu-T G.694.2 (8, 10, Or 18 Channels)
Dwdm Wavelengths Per Itu-T G.694.1 (C-Band, 1529.55 To 1563.86 Nm, Channel #S 17-60) In 50, 100 Or 200 Ghz Steps
Optional Extended Channel 14-62 Available
Tec Laser Stabilization For Hot And Cold Weather Conditions
Built-In Dwdm Wavelength Locker With ±2.5 Ghz Stability
Legacy Wavelengths Include 1310, 1550 And 1625 Live Testing
Sampling Resolution Up To 500,000 Points
Event Dead Zone <0.85 M, Attenuation Dead Zone <3.5 M
High Dynamic Range For Long Haul Fibers And Testing Through Xwdm Mux/Demux
Telcordia Gr-196 And Sr-4731.Sor File Formats
Optional V-Scout Mode – Smart Link Mapping Using Intuitive Icons Derived From Multiple Test Acquisitions
Optional Cwdm/Dwdm/Legacy Light Source Via Otdr Port
Optional Broadband Optical Power Meter
Optional Vfl 650 Nm Light Source
Built-In G.657A2 Launch Fiber To Characterize Otdr Connections And Short Fiber Spans
Fixed Connector Or Universal 2.5 Mm Optical Interface With Inter-Changeable Optical Adaptors (Sc/Fc/Lc)
Software
Advanced Software Architecture Supports Multiple Test Applications
Veexpress™ Cloud Or Enterprise Versions To Maintain Instrument Firmware And Manage Test Options Or Inventory
Ez Remote Software For Flexible Remote Control And Software Upgrade
Fiberizer® Desktop+ Pc Software For Advanced Trace Analysis And Report Generation
Fiberizer Cloud Trace Analysis And Data Management
Vesion® R-Server Compatibility For Centralized Work Force Management And Test Results Repository
Optional Fiber Inspection Scope (Usb) With Single Or Multi-Fiber (Mpo/Mtp®) Support
Hardware
High Resolution, 7” Full Color Tft Touch-Screen Viewable In Any Lighting Condition
Connectivity Via 10/100Base-T Management Interface, Wifi™, Bluetooth®, Or 3G/Lte For Back Office Applications
Intelligent Fan Operation With Built-In Temperature Sensor
Interchangeable Li-Ion Battery Pack For Extended Test Time
Usb-A Interface For Usb Flash Drives, Usb Wireless Dongles And Fiber Inspection Probe Connection
Optional Built-In Gps Module For Geotagging Otdr Traces
