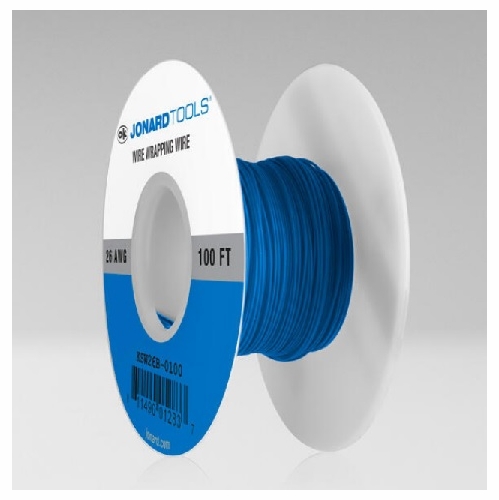

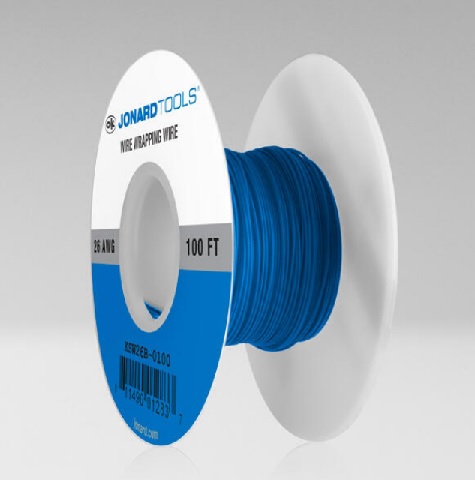

Jonard Ksw26B-0100 Wire 26Awg Blue 100 Ft Csw 811490012837
Available*
Item # 55405290
Model # KSW26B-0100
$32.95
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
WIRE CCX
Material and Supplies
Wire- Inside Wiring
Wire- Crossconnect- Jumper
JONARD INDUSTRIES CORP
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Jonard Ksw26B-0100 Wire 26Awg Blue 100 Ft Csw 811490012837
Typically Used Where Flexibility, Strength, And Low Weight Is Required, KynarŪ Wire Is Ideally Suited In Wire Wrap, Power Supply, Medical, And Aerospace Applications. It Is Also Commonly Used For Circuit Board Prototyping Because Of Its Lighter Weight And Smaller Overall Diameter. Additionally, Kynar Insulation Provides Excellent Mechanical Properties Over A Large Temperature Range And Is Resistant To An Extensive Range Of Chemicals Including Most Inorganic And Organic Acids, Bases, Alcohols, Halogenated Solvents, And Aliphatic & Aromatic Hydrocarbons. These Properties Make KynarŪ Wire An Excellent Choice When Working In Even The Harshest Environmental Applications. This Wire Also Features The Following:
Low Strip-Force KynarŪ Insulation Is Further Processed To Provide A Low Strip Force For Use With Csw Bits And Sleeves (Rohs Compliant) Ohfc (Oxygen-Free High Conductivity) Silver-Plated Copper Conductor Provides Exceptional Electrical Conductivity And Flexibility KynarŪ Insulation Provides High Temperature Resistance (Up To 105°C) And Excellent Abrasion Resistance Meets Or Exceeds Ul 1422 Standards
Specifications Color Blue
Wire Gauge 26 Awg (0.40 Mm)
Insulation Type Low Strip Force KynarŪ
Insulation Thickness 0.005" (0.127 Mm)
Overall Diameter 0.027" (0.69 Mm)
Material Silver Plated Copper Conductor
Standards Ul 1422
Voltage Not Rated
Length 100 Ft. (30.4 Meters)
Weight 0.142 Lb (64.41 G)
Upc No. 811490012837
Typically Used Where Flexibility, Strength, And Low Weight Is Required, KynarŪ Wire Is Ideally Suited In Wire Wrap, Power Supply, Medical, And Aerospace Applications. It Is Also Commonly Used For Circuit Board Prototyping Because Of Its Lighter Weight And Smaller Overall Diameter. Additionally, Kynar Insulation Provides Excellent Mechanical Properties Over A Large Temperature Range And Is Resistant To An Extensive Range Of Chemicals Including Most Inorganic And Organic Acids, Bases, Alcohols, Halogenated Solvents, And Aliphatic & Aromatic Hydrocarbons. These Properties Make KynarŪ Wire An Excellent Choice When Working In Even The Harshest Environmental Applications. This Wire Also Features The Following:
Low Strip-Force KynarŪ Insulation Is Further Processed To Provide A Low Strip Force For Use With Csw Bits And Sleeves (Rohs Compliant) Ohfc (Oxygen-Free High Conductivity) Silver-Plated Copper Conductor Provides Exceptional Electrical Conductivity And Flexibility KynarŪ Insulation Provides High Temperature Resistance (Up To 105°C) And Excellent Abrasion Resistance Meets Or Exceeds Ul 1422 Standards
Specifications Color Blue
Wire Gauge 26 Awg (0.40 Mm)
Insulation Type Low Strip Force KynarŪ
Insulation Thickness 0.005" (0.127 Mm)
Overall Diameter 0.027" (0.69 Mm)
Material Silver Plated Copper Conductor
Standards Ul 1422
Voltage Not Rated
Length 100 Ft. (30.4 Meters)
Weight 0.142 Lb (64.41 G)
Upc No. 811490012837
