Circa 1890Ecs1-50 710/66 Building Terminal
Available*
Item # 12405000
Model # 125023
$454.57
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Terminals
Material and Supplies
Building Entrance Terminals- Pedestal
50 Pair
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

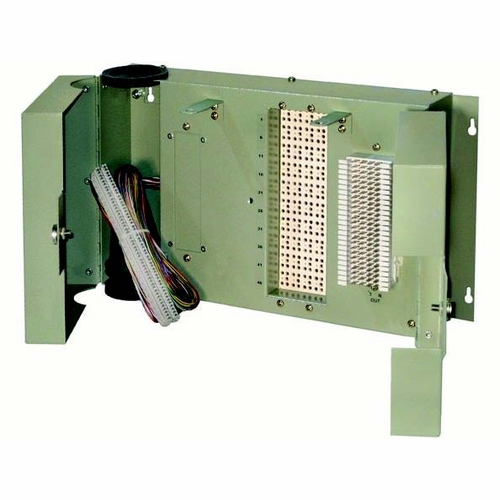

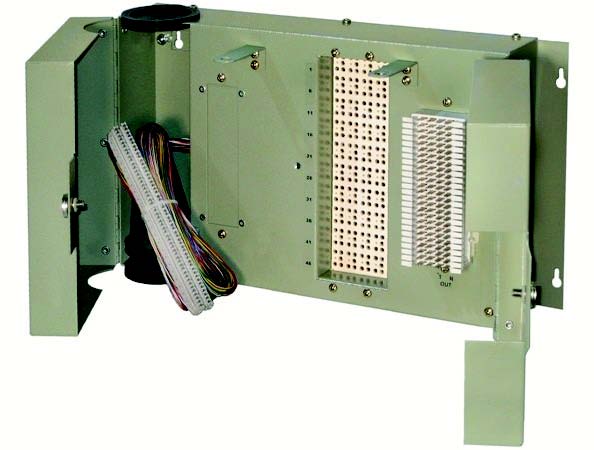

Circa Telecom 1890Ecs1-50 710/66 Building Terminal New 1890Ecs1-50
Previously 22507Qc-50
Features & Benefits 710 Connector Input And 66 Block Output Protects Up To 50 Lines, Also Available In 25 Pair (1890Ecs1-25) And 100 Pair (1890Ecs1-100) Configuration Double Door Locking Lid System For Restricted Or Separate Access Equipped With An Internal Fuse Link Also Equipped With A Removable Splice Chamber Should The Terminal Fuse Within A Multiple Configuration Stackable To Allow For Future Service Expansion External Ground Connectors Accept 6-14 Awg Ground Wire Accommodates Industry Standard 5 Pin Protection Module Designed To Exceed The Requirements Set Forth In Telcordia’S Tr-Nwt-00937, Gr-2916-Core And Underwriters Laboratory’S Ul497
Model No. Order No. Pair Input Output Dimensions Weight Count (H" X W" X D") (Lbs)
1890Ecs1-50 125023 50 710 Connector 66 Block 9.2 X 15.25 X 4.75 15
