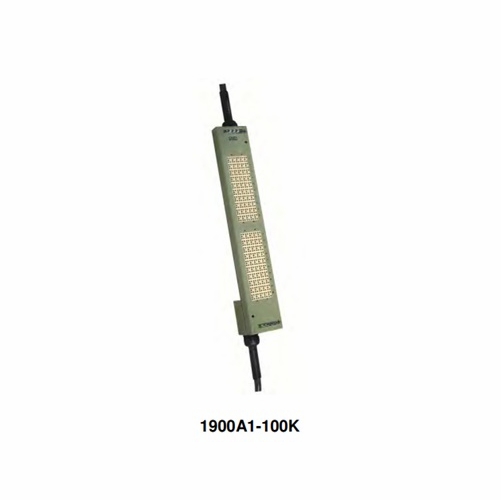

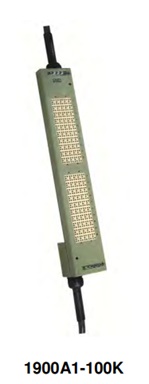

CIRCA 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
Available*
Item # 12740005
Model # 416016K25D25
$826.34
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TERMINALS
Material and Supplies
Building Entrance Terminals- Pedestal
100 Pair
Circa Telecom USA Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
CIRCA 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
CIRCA TELECOM 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
CIRCA 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
Model Number Stock Code Pair Count Input Output Dimensions (H" x W" x D") Weight 1900A1-100K 416016K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs 1900A1-100K 416015K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs (Both Stubs Top)
1900A1-100K 416014K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs. (Both Stubs Bottom)
1900A1-100K/50/50 416016K50A50 100 50’ 26AWG 50’ 24AWG 24.00 x 4.00 x 3.83 58 lbs 1900A1-100K/100/100 416016K100A100 100 100’ 26AWG 100’ 24AWG 24.00 x 4.00 x 3.83 82 lbs
100 PAIR - INDOOR BET - CABLE STUB/CABLE STUB - NO COVER
UL 497 Primary Protector for Communication Circuits NAFTA Country of Origin: CANADA - All Loaded and Unloaded Models are "Buy America Act" Approved. 16AWG Powder Coated Steel Construction Equipped with an Internal 26AWG Fuse Link External Three Position Ground Connectors Accept 6 - 14 AWG Wire Industry Standard 5 Pin Design Exceeds UL497 Primary Protection Standards High-Density Wall or Frame Mountable
Notes Cable Type: 26AWG 25' OSP Rated Air Core Input 0.772 dia o.d. - 24AWG 25' Shielded CMR output 0.74 dia o.d. Installation: Indoor Wall Mount or Frame Mount Custom cable lengths available in 25' increments
CIRCA TELECOM 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
CIRCA 1900A1-100K STUB/STUB WITHOUT MODULES BUILDING TERMINAL
Model Number Stock Code Pair Count Input Output Dimensions (H" x W" x D") Weight 1900A1-100K 416016K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs 1900A1-100K 416015K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs (Both Stubs Top)
1900A1-100K 416014K25A25 100 25’ 26AWG 25’ 24AWG 24.00 x 4.00 x 3.83 34 lbs. (Both Stubs Bottom)
1900A1-100K/50/50 416016K50A50 100 50’ 26AWG 50’ 24AWG 24.00 x 4.00 x 3.83 58 lbs 1900A1-100K/100/100 416016K100A100 100 100’ 26AWG 100’ 24AWG 24.00 x 4.00 x 3.83 82 lbs
100 PAIR - INDOOR BET - CABLE STUB/CABLE STUB - NO COVER
UL 497 Primary Protector for Communication Circuits NAFTA Country of Origin: CANADA - All Loaded and Unloaded Models are "Buy America Act" Approved. 16AWG Powder Coated Steel Construction Equipped with an Internal 26AWG Fuse Link External Three Position Ground Connectors Accept 6 - 14 AWG Wire Industry Standard 5 Pin Design Exceeds UL497 Primary Protection Standards High-Density Wall or Frame Mountable
Notes Cable Type: 26AWG 25' OSP Rated Air Core Input 0.772 dia o.d. - 24AWG 25' Shielded CMR output 0.74 dia o.d. Installation: Indoor Wall Mount or Frame Mount Custom cable lengths available in 25' increments
