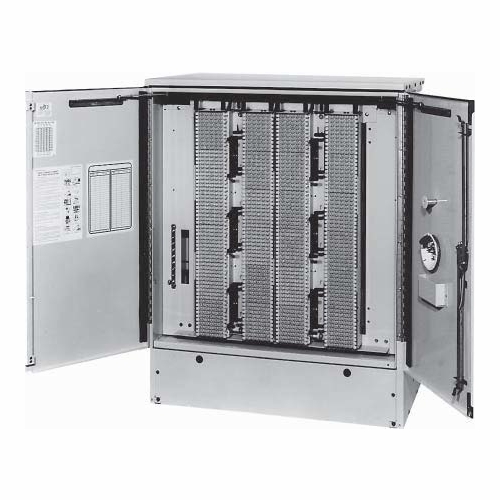

EMERSON NETWORK POWER 3600 PAIR CROSS CONNECT CABINET FSUNCQF3600DCBMG

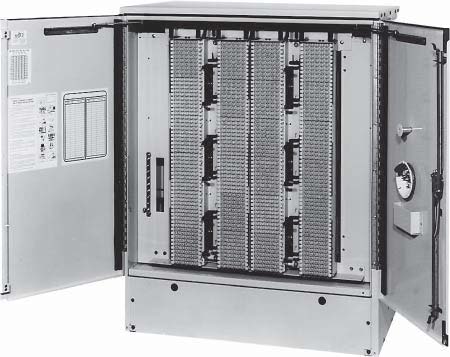

EMERSON NETWORK POWER NETWORK POWER 3600 PAIR CROSS CONNECT CABINET FSUNCQF3600DCBMG NEW Description The pad-mounted UN Swing-Out Series (formerly Universal Series) cross-connect interface system has a center-feed horizontal jumper run for efficient installation of jumpers. Cabinets can be equipped with the either RLS50 self-strip or CQF50 terminal blocks, and are available in pair counts up to 5400 pairs. The three primary cabinet sizes accommodate all feeder/distribution needs from 900 to 5400 pairs. Single access cabinets accommodate up to 2700-pair, and double-access cabinets accommodate up to 5400-pairs. Cabinets are mounted directly to the pad through holes in turned-in flanges of the base. Block options include: RLS50 blocks, which provide rapid pair-at-a-time nostrip jumpering or CQF50 blocks, which eliminate accidental disruption of service from moisture bridges, hits, and shorts. The cabinets are manufactured of heavy gauge mill-galvanized steel, treated with a finishing process for longer life. Housing color is off-white. Application Universal Series cabinets are intended for use as a serving area interface or in astandard cross-connect application for feeder and distribution cables.

Dimensions Pair Count H W D Single Access 600-1200 47-in. 41-in. 24-in. 1300-1800 50-in. 54-in. 24-in. 1900-2700 75-in. 53-in. 22-in. Double Access 1200-2400 47-in. 41-in. 24-in. 1800-3600 50-in. 54-in. 24-in. 2700-5400 75-in. 53-in. 22-in.
