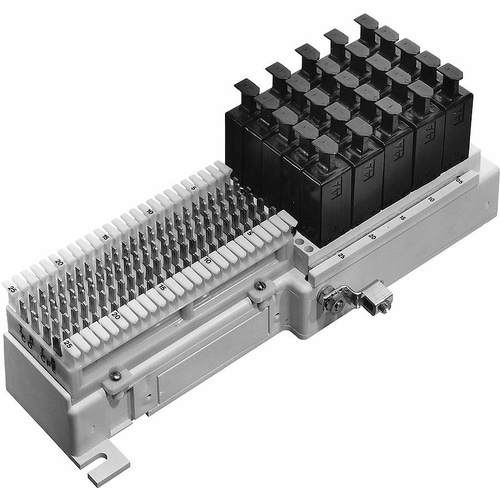

RELIABLE R66P25QCC 25PR 66/RJ21 BUILDING TERMINAL F015361

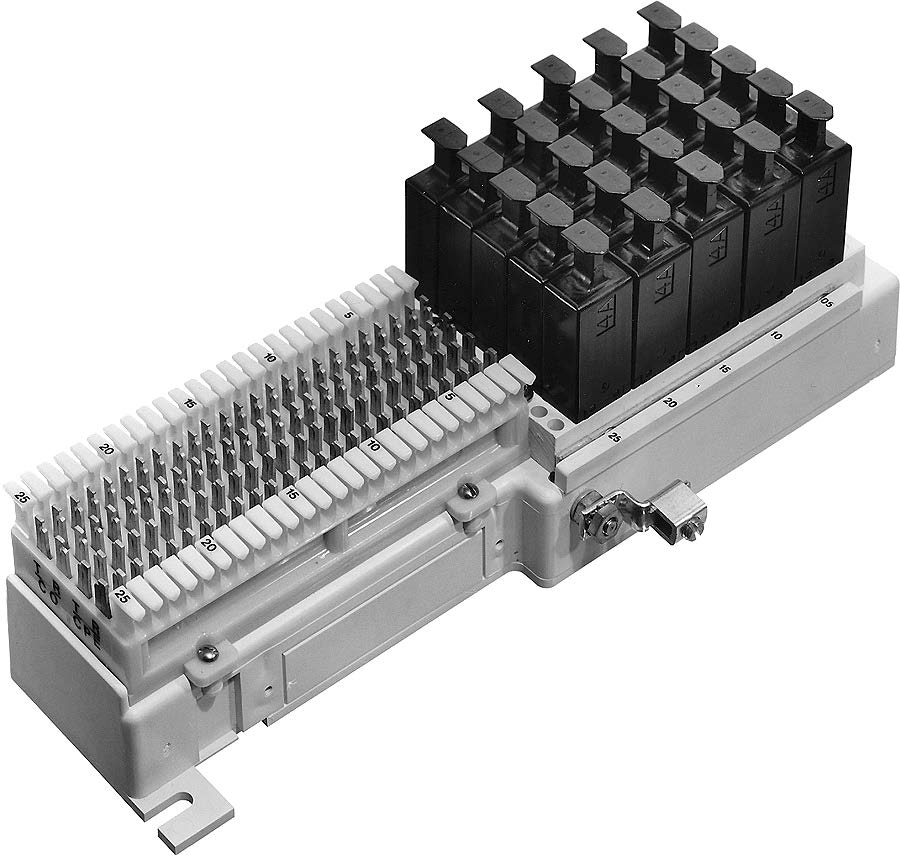

EMERSON NETWORK POWER R66P25QCC 25PR 66/RJ21 BUILDING TERMINAL F015361 NEW R66P25 Series 25-Pair Protection Description The R66P25 series of indoor blocks offers protection for 25-pr. in a compact, versatile, and cost-effective unit. These blocks have the same mounting dimensions as a 66M150 block, and can be mounted on a wall, backboard, or 89-type bracket (Marconi R891 and R89B). Standard network cable termination options are either quick-clips or a cable stub. Customer premise equipment termination options are quick-clips or 50-position RJ21 connectors. Unstripped 20- to 26-gauge (.4 to .8 mm) conductors can be easily terminated using an industry standard 714-type punch-down tool (Marconi R714B). Each block is supplied with an integral fanning strip molded on one side of the base, marked every five rows to simplify pair identification. Units may be ordered with or without factory-installed 5-pin protector modules. To order the R66P25 with factory-installed protection, add selected Marconi protector module catalog numbers (R3B1E, 3GUVS, etc.) to the catalog number. The R66P25 series will accept carbon, gas, or solid-state 5-pin protector modules. One module provides protection for one pair, and each unit can accommodate 25 modules. Each R66P25 is also supplied with a ground connector for a 6AWG solid copper wire.

Application

The R66P25 series of protected blocks for indoor use provide protection, protection/demarcation, and sneak current fuse protection. Intended for utilization in small businesses, multiple dwelling units (MDUs), and medium-density commercial or industrial buildings, the R66P25 series is used by regulated telcos, interconnects, and contractors.
