FISHER TW8800 INDUSTRIAL METAL DETECTOR -PIPE AND CABLE LOCATOR
Available*
Item # 22359900
Model # 8800
$4,482.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
LOCATOR
Test Equipment
Locators Cable Path-Depth
Locators- Cable Path
Fisher Scientific Inc
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

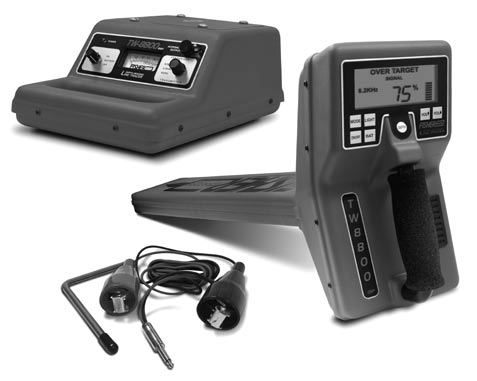

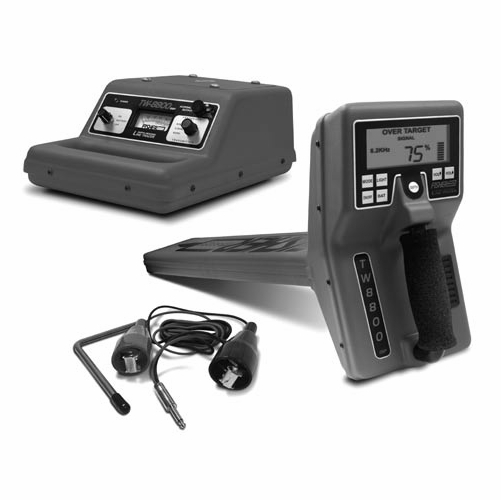

FISHER TW8800 INDUSTRIAL METAL DETECTOR -PIPE AND CABLE LOCATOR NEW Fisher TW-8800 Digital Line Tracer
TW-8800 RECEIVER
Depth Accuracy: +1 inch per foot in nominal conditions Readout Units: Inches or cm (factory preset) Left/Right Guidance: Audio: continuous tone=Left, pulsed tone=Right. VCO (varying pitch) output for easy over target location. Visual: Left/Right/Over Target messages Signal Strength: Digital Numeric Readout (0-99%) & Bar Graph Sensitivity Adjust: Automatic LCD Backlight: Included Battery Test: Automatic Low Battery alert Push button readout Battery Life: 80 Hours Battery Type: 6 - “C” cells Weight: 6 lbs. (2.7 kg) Operating Temp: -4 to +1400F (-200 to +600C) Dimensions: 6 1/2” x 11” x 32 1/2” (16.5 x 27.9 x 82.6 cm) TW-8800 TRANSMITTER
Output Frequencies: 82 kHz, 8.2 kHz, 820 Hz Output Power (nominal): 82 kHz: .7 Watts, 8.2 kHz: 7.0 Watts, 820 Hz: 7.0 Watts Battery Test: Yes Battery Life: 80 Hrs. at 82kHz Battery Type: 2 - 6 Volt lantern batteries Weight: 7.8 lbs. (3.5 kg) Dimensions: 7 3/4” x 12” x 6” (19.7 x 30.5 x 15.2 cm)
OPTIONAL ACCESSORIES for both TW-7700 & TW-8800
Headphones: Volume adjusts separately for each ear. Coupling Clamp: Useful for in-service and electrical power line tracing when a metal-to-metal hookup is not possible Sonde: Insertable transmitter
TW-8800 RECEIVER
Depth Accuracy: +1 inch per foot in nominal conditions Readout Units: Inches or cm (factory preset) Left/Right Guidance: Audio: continuous tone=Left, pulsed tone=Right. VCO (varying pitch) output for easy over target location. Visual: Left/Right/Over Target messages Signal Strength: Digital Numeric Readout (0-99%) & Bar Graph Sensitivity Adjust: Automatic LCD Backlight: Included Battery Test: Automatic Low Battery alert Push button readout Battery Life: 80 Hours Battery Type: 6 - “C” cells Weight: 6 lbs. (2.7 kg) Operating Temp: -4 to +1400F (-200 to +600C) Dimensions: 6 1/2” x 11” x 32 1/2” (16.5 x 27.9 x 82.6 cm) TW-8800 TRANSMITTER
Output Frequencies: 82 kHz, 8.2 kHz, 820 Hz Output Power (nominal): 82 kHz: .7 Watts, 8.2 kHz: 7.0 Watts, 820 Hz: 7.0 Watts Battery Test: Yes Battery Life: 80 Hrs. at 82kHz Battery Type: 2 - 6 Volt lantern batteries Weight: 7.8 lbs. (3.5 kg) Dimensions: 7 3/4” x 12” x 6” (19.7 x 30.5 x 15.2 cm)
OPTIONAL ACCESSORIES for both TW-7700 & TW-8800
Headphones: Volume adjusts separately for each ear. Coupling Clamp: Useful for in-service and electrical power line tracing when a metal-to-metal hookup is not possible Sonde: Insertable transmitter
