TEMPO PE620 LOOP VERIFIER/TONE GENERATOR 50086650/783310086659
Available*
Item # 24725000
Model # PE620
$101.94
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TONE
Test Equipment
Tone Generators- Probes-Amplifiers
Probes- Inductive- Amplified
Greenlee Textron
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

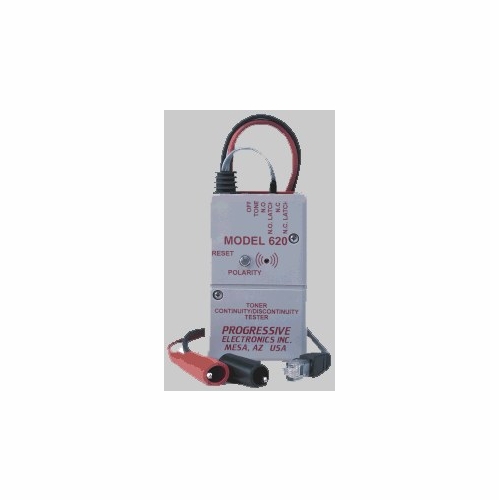

GREENLEE PE620 LOOP VERIFIER/TONE GENERATOR 50086650/783310086659 NEW Designed specifically as a security and alarm continuity tester, the PE620 Loop Verifier can be connected to a Normally Open or Normally Closed loop pair and provides a distinct audible tone when the alarm condition occurs.
Latching feature identifies intermittent failures (swingers) and confirms operation of switches at remote locations. In latching mode, the Loop Verifier will catch the alarm condition and continue until the tester is reset.
As a tone generator, this loop verifier provides a traditional variable tone that can be applied using the 24" red & black test leads or 6-position modular plug included. The magnetic back plate allows convenient mounting directly to control panel cabinets & doors.
Specifications: Power; one 9V battery Battery life (nominal); 100+ hours tone, 15+ hours audible signal Tone frequency; 900/1100 Hz alternating, nominal Tone output; +3 dBm into 600 ohms Continuity; N.O. on <50k ohms, off >80k ohms; N.C. on >120k ohms, off <80k ohms Latch sensitivity; any occurrence >100 microseconds High impact ABS case, 5.5 oz w/battery
Latching feature identifies intermittent failures (swingers) and confirms operation of switches at remote locations. In latching mode, the Loop Verifier will catch the alarm condition and continue until the tester is reset.
As a tone generator, this loop verifier provides a traditional variable tone that can be applied using the 24" red & black test leads or 6-position modular plug included. The magnetic back plate allows convenient mounting directly to control panel cabinets & doors.
Specifications: Power; one 9V battery Battery life (nominal); 100+ hours tone, 15+ hours audible signal Tone frequency; 900/1100 Hz alternating, nominal Tone output; +3 dBm into 600 ohms Continuity; N.O. on <50k ohms, off >80k ohms; N.C. on >120k ohms, off <80k ohms Latch sensitivity; any occurrence >100 microseconds High impact ABS case, 5.5 oz w/battery
