GMP 86350 SUPPORT LADDER E 33.50 inch
Available*
Item # 29590000
Model # 86350
$493.20
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SLINGS
Tools
Ladders- Accessories
Parts- Miscellaneous
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

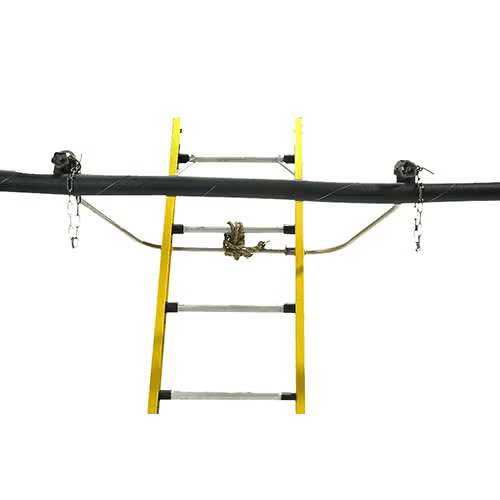

GENERAL MACHINE PRODUCTS 86350 SUPPORT LADDER E 33.50" NEW The Model E Ladder Support is used for supporting the upper end of an extension ladder away from the cable and strand.
Can be used on any wooden or fiberglass extension ladder up to 18 in. (46 cm) wide, with side rails up to 2-1/8 in. (54 mm) wide, and on any 1/4 in. to 7/16 in. (6-11 mm) diameter strand
Consists of two screw clamp assemblies, grooved to fit the strand and permanently attached to a U shaped aluminum alloy member with a single rail fitting. Also includes a safety rope and two tether chains
There are three different versions of the Model E Ladder Support. The arms on the larger version extend 38-1/2 in. (98 cm) from the strand providing working clearance for splicing tools and jigs. The two smaller versions have shorter arms for when your work calls for a closer extension from the cable 28-1/2 in. (60 cm) and 23-1/2 in. (72 cm) respectively.
The Model E Ladder support's U Shaped member has a screw clamp assembly at each end. Each assembly in turn has its own tether chain, and can accommodate either lashed or ring supported cable installations without disturbing the cable itself.
The clamp assembly will also fit on any self support cable where the messenger is 1/4 in. (6 mm) dia. or greater. There is also a rope connected to the center of the member for tying off the support to a rung on your ladder.
Safety Note: Before you get on any ladder, make sure it is positioned well away from any potential conductors... and that it is completely stable and secure. Once you're on the ladder, secure yourself to it, following the practice that applies to your work.
Ordering Information P/N Description Weight
86350 Model E Ladder Support with 33-1/2 in. Extension 10 lbs. (4.5 kgs)
86353 Model E Ladder Support with 28-1/2 in. Extension 10 lbs. (4.5 kgs)
86351 Model E Ladder Support with 23-1/2 in. Extension 10 lbs. (4.5 kgs)
86350 Model E Ladder Support with 33-1/2 in. Extension 10 lbs. (4.5 kgs)
shipping dimensions 40"x40"x4"
shipping weight 12 lbs
Can be used on any wooden or fiberglass extension ladder up to 18 in. (46 cm) wide, with side rails up to 2-1/8 in. (54 mm) wide, and on any 1/4 in. to 7/16 in. (6-11 mm) diameter strand
Consists of two screw clamp assemblies, grooved to fit the strand and permanently attached to a U shaped aluminum alloy member with a single rail fitting. Also includes a safety rope and two tether chains
There are three different versions of the Model E Ladder Support. The arms on the larger version extend 38-1/2 in. (98 cm) from the strand providing working clearance for splicing tools and jigs. The two smaller versions have shorter arms for when your work calls for a closer extension from the cable 28-1/2 in. (60 cm) and 23-1/2 in. (72 cm) respectively.
The Model E Ladder support's U Shaped member has a screw clamp assembly at each end. Each assembly in turn has its own tether chain, and can accommodate either lashed or ring supported cable installations without disturbing the cable itself.
The clamp assembly will also fit on any self support cable where the messenger is 1/4 in. (6 mm) dia. or greater. There is also a rope connected to the center of the member for tying off the support to a rung on your ladder.
Safety Note: Before you get on any ladder, make sure it is positioned well away from any potential conductors... and that it is completely stable and secure. Once you're on the ladder, secure yourself to it, following the practice that applies to your work.
Ordering Information P/N Description Weight
86350 Model E Ladder Support with 33-1/2 in. Extension 10 lbs. (4.5 kgs)
86353 Model E Ladder Support with 28-1/2 in. Extension 10 lbs. (4.5 kgs)
86351 Model E Ladder Support with 23-1/2 in. Extension 10 lbs. (4.5 kgs)
86350 Model E Ladder Support with 33-1/2 in. Extension 10 lbs. (4.5 kgs)
shipping dimensions 40"x40"x4"
shipping weight 12 lbs
