GMP 86351 SUPPORT LADDER E 23.50 inch NEW
GMP 86351 SUPPORT LADDER E 23.50 inch NEW
P/N 86351 SUPPORT LADDER E 23.50 inch NEW

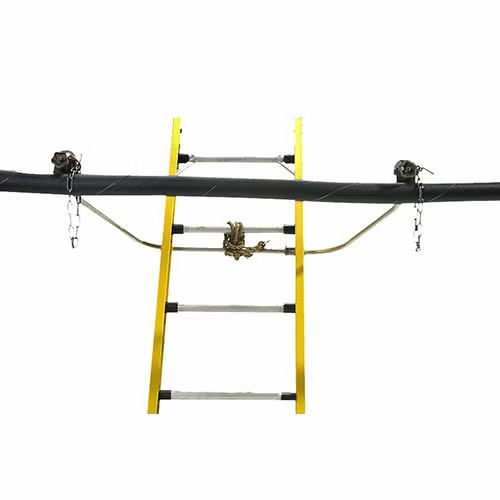

The E ladder support is used for supporting the upper end of an extension ladder away from the cable and strand. It can be used on any wooden or fiberglass extension ladder up to 18 inches wide with side rails up to 2 1/8 inches wide and on any 1/4 inch to 7/16 inch diameter strand. It consists of two screw clamp assemblies, grooved to fit the strand and permanently attached to a U shaped aluminum alloy member with a single rail fitting. Also includes a safety rope and two tether chains. There are two versions of the E ladder support. The arms on the larger version extend 38 1/2 inches from the strand and provide working clearance for splicing tools and jigs. The smaller version has shorter arms for when your work calls for a closer extension from the cable 23 1/2 inches. The E ladder support's U shaped member has a screw clamp assembly at each end. Each assembly in turn has its own tether chain, and can accomodate either lashed or ring supported cable installations without disturbing the cable itself. The clamp assembly will also fit on any self support cable where the messenger is 1/4 inch diameter or greater. There is also a rope connected to the center of the member for tying off the support to a rung on your ladder.
P/N 86350 E ladder support with 33 1/2 inch extension weight 10 lbs P/N 86351 E ladder support with 23 1/2 inch extension weight 10 lbs
shipping dimensions 40"x40"x4" shipping weight 12 lbs
