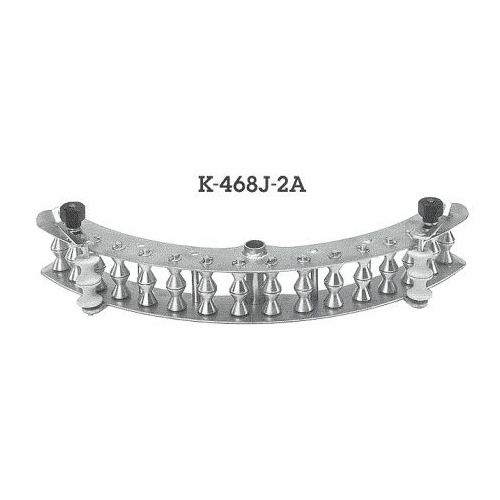

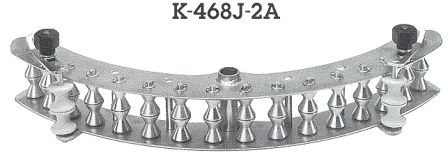

LEMCO K-468J 90-DEGREE CABLE CORNER BLOCK

LEMCO TOOL K-468J 90-DEGREE CABLE CORNER BLOCK NEW Corner Blocks/ K-468J,M-370J Corner Blocks are used to guide fiber and coaxial cable around corners. The MIG welded steel frames are designed on a strong 17 inch radius and support the rollers on 2 inch centers. Proper alignment of the cable to the input end of the corner block will ensure minimum friction, ease of pull-out and quality installed cables. The cable keepers can be set to the true degree of the corner. A row of aluminum rollers accommodates super trunk cables and is compatible with synthetic winch lines. Flared edges allow for safe cable entry and exit. All LEMCO TOOL corner blocks can be used with either fiber optic or coaxial cables. Quad cable blocks are supplied with three rows of 1inch synthetic and one row of 1-1/4 inch aluminum rollers. V-style rollers support the cable at two locations during pullout, minimizing potential damage to the coaxial cable. Single and dual row corner blocks are available in different configurations. See tables for details. Model K-468J Segment of arc 90 Roller type Synthetic/aluminum Roller configuration 1 row 1 1/4 inch aluminum, 3 rows 1inch synthetic Wt.(lbs.) 21.2
