GMP 68490 PULLER STRAND B 8264
Available*
Item # 30050000
Model # 68490
$696.18
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
GRIPS
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 68490 PULLER STRAND B 8264 NEW
GMP 68490 PULLER STRAND B 8264 NEW
P/N 68490 B Strand Puller 8264
The Type B Strand Puller (P/N 68490) is designed for tensioning figure-8 cable on 1/4 in. (6-7mm) poly jacketed strand, and designed for pulling loads up to 5000 lbs. (2268kg)

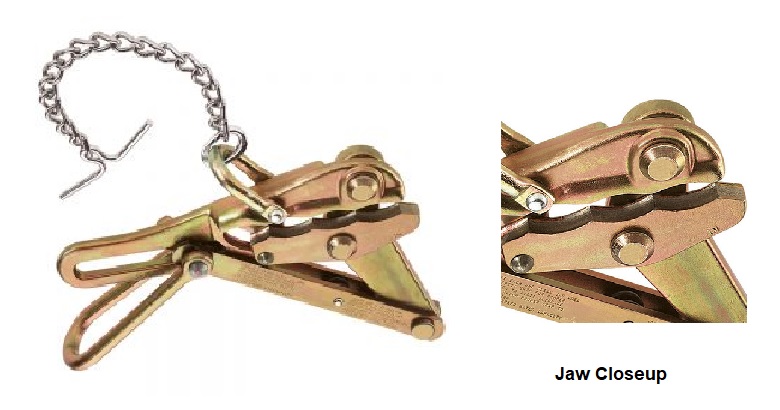

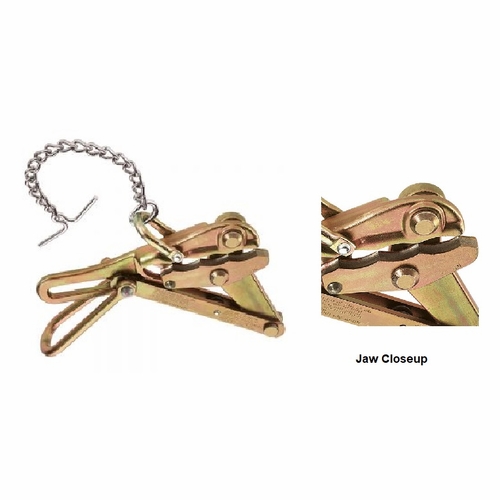

This forged steel unit is used when pulling or tensioning suspension strand. The L, H, and B Strand Pullers feature a fixed and movable jaw linked to a clevis. Applying pull to the clevis causes the jaw in turn to grip the strand.
The Model B Strand Puller is designed for tensioning figure-8 cable on 1/4 in. (6-7 mm) poly jacketed strand, and designed for pulling loads up to 5000 lbs. (2268 kgs)
A safety chain permanently secured to a shackle acts as a safety tether in the event the grip disengages
The Model H Strand Puller is designed for tensioning strand sizes from 3/8 in. through 1/2 in. (9.5-12.7 mm) and for pulling loads that exceed 5000 lbs. but not more than 10,000 lbs. (4535 kgs)
The Model L Strand Puller is designed for tensioning strand sizes from 3/16 in. through 7/16 in. (4.7-11 mm) and for pulling loads up to 5000 lbs. (2268 kgs)
NOTE: The gripping power of the strand puller is greatly reduced if either the grooves of the jaw or the strands are coated with oil, grease, or paraffin. For best results wipe both the strand at the point of attachment and the grooves of the puller jaws thoroughly with a cleaning solution.
-------------------------------------------------------------------------------- 68490 Model B Strand Puller 6 lbs. (3 kgs) 68491 Model H Strand Puller 15 lbs. 8 oz. (7 kgs) 68492 Model L Strand Puller 6 lbs. 4 oz. (3 kgs)
GMP 68490 PULLER STRAND B 8264 NEW
P/N 68490 B Strand Puller 8264
The Type B Strand Puller (P/N 68490) is designed for tensioning figure-8 cable on 1/4 in. (6-7mm) poly jacketed strand, and designed for pulling loads up to 5000 lbs. (2268kg)
This forged steel unit is used when pulling or tensioning suspension strand. The L, H, and B Strand Pullers feature a fixed and movable jaw linked to a clevis. Applying pull to the clevis causes the jaw in turn to grip the strand.
The Model B Strand Puller is designed for tensioning figure-8 cable on 1/4 in. (6-7 mm) poly jacketed strand, and designed for pulling loads up to 5000 lbs. (2268 kgs)
A safety chain permanently secured to a shackle acts as a safety tether in the event the grip disengages
The Model H Strand Puller is designed for tensioning strand sizes from 3/8 in. through 1/2 in. (9.5-12.7 mm) and for pulling loads that exceed 5000 lbs. but not more than 10,000 lbs. (4535 kgs)
The Model L Strand Puller is designed for tensioning strand sizes from 3/16 in. through 7/16 in. (4.7-11 mm) and for pulling loads up to 5000 lbs. (2268 kgs)
NOTE: The gripping power of the strand puller is greatly reduced if either the grooves of the jaw or the strands are coated with oil, grease, or paraffin. For best results wipe both the strand at the point of attachment and the grooves of the puller jaws thoroughly with a cleaning solution.
-------------------------------------------------------------------------------- 68490 Model B Strand Puller 6 lbs. (3 kgs) 68491 Model H Strand Puller 15 lbs. 8 oz. (7 kgs) 68492 Model L Strand Puller 6 lbs. 4 oz. (3 kgs)
