Current Tools 00678-020 Split Mesh Lace - Dbl. Weave, Sgl. Eye Pulling Grip
Available*
Item # 30151290
Model # 00678-020
$155.57
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
GRIPS
Tools
Line Construction- Placing
Grips- Strand- Lashing Wire
Current Tools
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

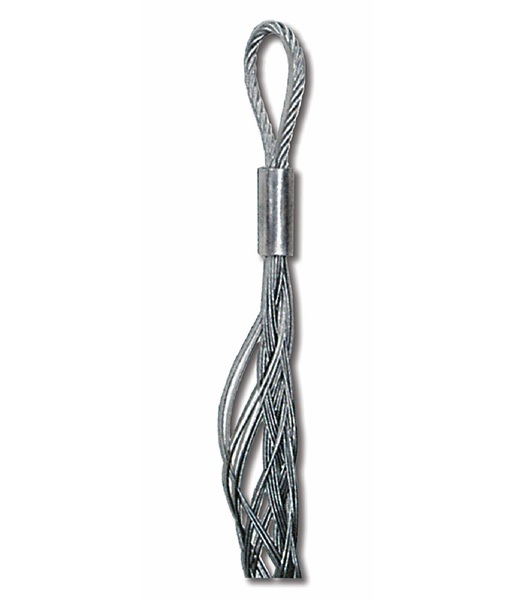

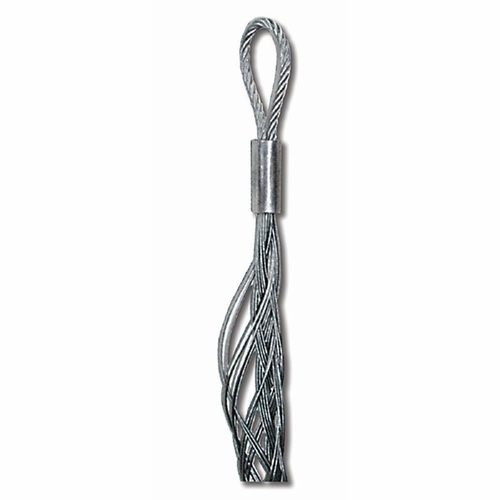

Current Tool 00678-020 Split Mesh Lace - Dbl. Weave, Sgl. Eye Pulling Grip New
Pulling Grips - 00678 & 00679 Series Double Weave / Single Eye / Slack Grip / Split Mesh (Lace up) These grips offer a Flexible Eye and Double Weave galvanized wire construction for those times when a side loaded pulling rope is easier. If the cable end is not available, then the Split Mesh is preferred. Catalog Size Mesh Approx. Number Range Length Breaking Strength 00678-010 0.38" to 0.74" 14" 4,100 lbs. 00678-020 0.75" to 1.12" 17" 4,970 lbs. 00678-030 1.13" to 1.49" 18" 8,150 lbs. 00678-040 1.50" to 1.99" 20" 12,100 lbs. 00679-050 2.00" to 2.49" 21" 16,140 lbs. 00679-065 2.50" to 2.99" 22" 16,140 lbs. 00679-080 3.00" to 3.74" 23" 20,170 lbs. 00679-095 3.75" to 4.24" 24" 23,400 lbs.
