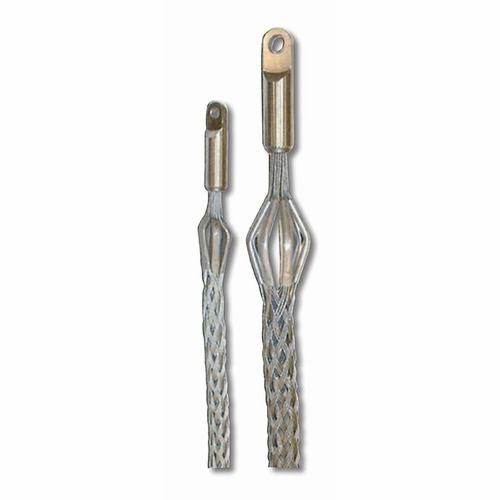

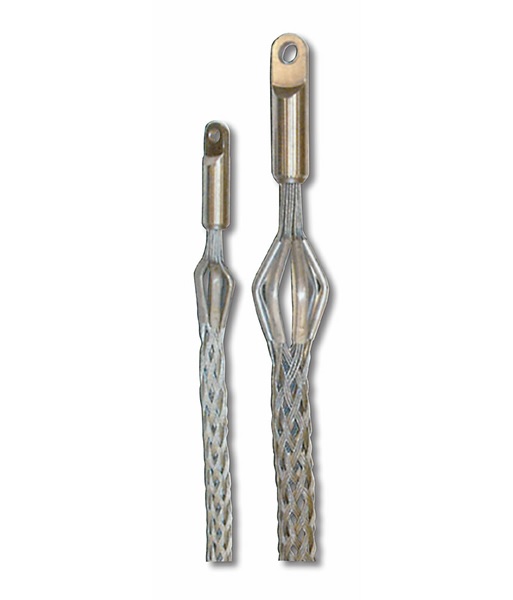

Current Tool 00682-006 Triple Weave, Rotary Head Pulling Grip New
Pulling Grips - 00682 Series
Triple Weave / Rotary Head / Shoulders
These grips offer a Stainless-Steel Rotary Head with Shoulders and Triple Weave galvanized wire construction. The shoulders help to protect the leading edge of the cable and this type should be used for heavy duty applications.
Note: The Rotating Head does not replace the use of a Line Swivel, Series 00505. There are no bearings to allow rotation under load and severe damage may occur to the cable being installed if this product is used without the correct swivel.
Catalog Size Mesh Approx. Number Range Length Breaking Strength 00682-006 0.25" to 0.49" 28" 6,500 lbs. 00682-012 0.50" to 0.74" 33" 10,400 lbs 00682-019 0.75" to 0.99" 41" 16,000 lbs. 00682-025 1.00" to 1.24" 51" 25,400 lbs. 00682-032 1.25" to 1.49" 60" 31,700 lbs. 00682-038 1.50" to 1.99" 70" 32,000 lbs. 00682-048 2.00" to 2.49" 75" 44,600 lbs.
Pulling Grips - 00682 Series
Triple Weave / Rotary Head / Shoulders
These grips offer a Stainless-Steel Rotary Head with Shoulders and Triple Weave galvanized wire construction. The shoulders help to protect the leading edge of the cable and this type should be used for heavy duty applications.
Note: The Rotating Head does not replace the use of a Line Swivel, Series 00505. There are no bearings to allow rotation under load and severe damage may occur to the cable being installed if this product is used without the correct swivel.
Catalog Size Mesh Approx. Number Range Length Breaking Strength 00682-006 0.25" to 0.49" 28" 6,500 lbs. 00682-012 0.50" to 0.74" 33" 10,400 lbs 00682-019 0.75" to 0.99" 41" 16,000 lbs. 00682-025 1.00" to 1.24" 51" 25,400 lbs. 00682-032 1.25" to 1.49" 60" 31,700 lbs. 00682-038 1.50" to 1.99" 70" 32,000 lbs. 00682-048 2.00" to 2.49" 75" 44,600 lbs.
