HUBBELL FWDE1108 Deadend for 7/16 inch Guy Strand Formed Wire 096359366096 NEW
HUBBELL FWDE1108 Deadend for 7/16 inch Guy Strand Formed Wire 096359366096 NEW
Item # FWDE1108 HUBBELL Deadend for 7/16 inch Guy Strand Formed Wire UPC: 096359366096

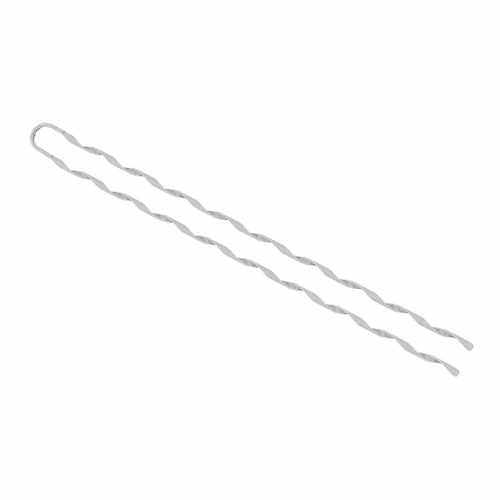

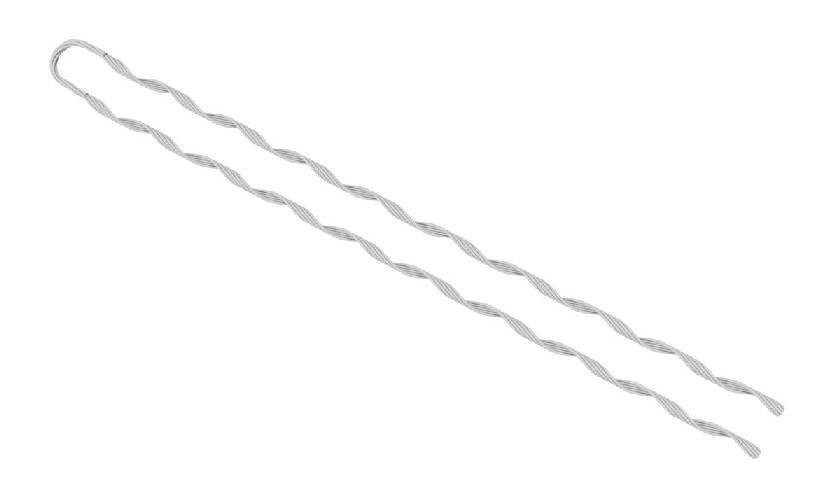

Formed Wire Deadend for 7/16" Guy Strand
For deadend applications of support guy wires. Fargo FWDE series formed wire deadends are designed for use on all types of galvanized guy wire (EHS, High Strength, Common, Siemens-Martin, Utilities and Bell System Strand).
Features For HSS, EHS, Common Siemens-Martin; Utilities and Bell System Strand grades; Zinc plated (B-coat) EHS steel construction; 20800lb (92.5KN) maximum RBS
General Application Deadend for Guy Strand Color Code Green Material Galvanized Steel Product Category Guy Wire Type Formed Wire UPC 096359366096
Dimensions Dimensions 38.000 in x 0.598 in x 3.446 in Height 3.446 in Length 38 in Nominal Guy Wire Size 7/16" 7 Strand Weight 1.44 lb Width 0.598 in
Conductor Related Conductor Diameter - Maximum 0.474 in Conductor Diameter - Minimum 0.395 in Conductor Diameter Range 0.395 - 0.474 Conductor Type Galvanized Steel Guy Wire Type Galvanized Steel
Logistics Carton Quantity 25 Pallet Quantity 700
FWDE1108 7/16" NOMIMAL SIZE 20,800 LB MAXIMUM RBS 38" NOMINAL LENGTH
DIAMETER RANGE MIN.395" (10.03MM) MAX .474'' (12.04MM)
COLOR CODE GREEN
25 PER CASE
36 LBS PER CASE
