Plp 4300117G Fiberlign Suspension Opgw W/Grnd .633-.666 *Order Minimum* 6
Available*
Item # 30184207
Model # 4300117G
$162.53
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Opgw
Fiber Optic Products
Fiber Optic Infrastructure
Fiber Cable Suspension Clamps
Preformed Line Products
Fiber Clamps For OPGW Cable
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Plp 4300117G Fiberlign Suspension Opgw W/Grnd .633-.666 *Order Minimum* 6
Plp 4300117G Fiberlign Suspension Opgw W/Grnd .633-.666 *Order Minimum* 6
P/N 4300117G Preformed Line Products Fiberlign Suspension Opgw With Ground .633-.666 *Order Minimum* 6

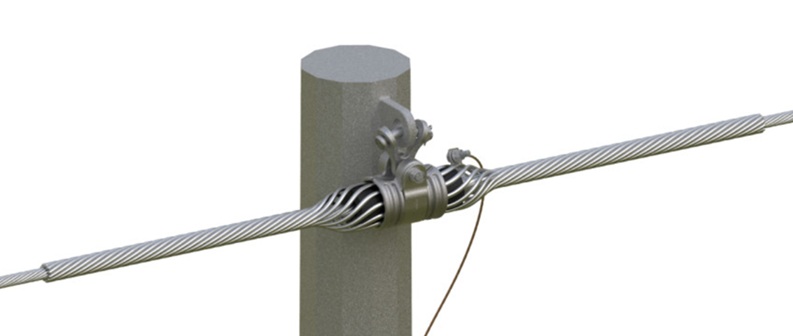

The Fiberlign Suspension Uses A Combination Of Structural Reinforcing Rods (Srr), Outer Rods, Housing Halves, And Resilient Inserts To Reduce Compression, Clamping, And Bending Stresses On Opgw And The Optical Fibers Within It.
Reduces Negative Effects Of Wind-Induced Cable Motion, Such As Aeolian Vibration, Galloping, And Sway
Housing Halves Are Captured By The Aluminum Strap For A Low-Stress Assembly And Suspended By A Single Galvanized Steel Bolt, Washer, And Locknut Connection To Prevent Compression Stress
Inserts Are Made From An Elastomer That Is Specifically Formulated To Resist Deterioration From Uv, Weathering, Extreme Temperature Variations, And Compression Set
An Aluminum Alloy Reinforcement Is Molded Into Each Insert Half For Extreme Loading
A Current Transfer Tab Is Included With All Standard Suspensions To Provide A Direct Electrical Bond Between The Opgw And A Ground Lead
The Current Transfer Tab Is Captured Between The Outer Rods Of The Opgw And The Srr, Simplifying Installation As No Fasteners Are Required And Over-Torquing Is Avoided
Housing Assembly, Srr, And Outer Rods Are Made From A High-Strength Aluminum Alloy
An Optional Ground Wire Assembly Can Be Included With The Suspension
Srr And Outer Rods Cannot Be Reused. Hardware Components Can Be Reused If They Are In Good Condition
The Fiberlign Suspension Has Been Thoroughly Tested For Vibration, Mechanical Loading, And Optical Attenuation In Accordance With Ieee Standard 1138 And Ieee Standard 1591.1
Plp 4300117G Fiberlign Suspension Opgw W/Grnd .633-.666 *Order Minimum* 6
P/N 4300117G Preformed Line Products Fiberlign Suspension Opgw With Ground .633-.666 *Order Minimum* 6
The Fiberlign Suspension Uses A Combination Of Structural Reinforcing Rods (Srr), Outer Rods, Housing Halves, And Resilient Inserts To Reduce Compression, Clamping, And Bending Stresses On Opgw And The Optical Fibers Within It.
Reduces Negative Effects Of Wind-Induced Cable Motion, Such As Aeolian Vibration, Galloping, And Sway
Housing Halves Are Captured By The Aluminum Strap For A Low-Stress Assembly And Suspended By A Single Galvanized Steel Bolt, Washer, And Locknut Connection To Prevent Compression Stress
Inserts Are Made From An Elastomer That Is Specifically Formulated To Resist Deterioration From Uv, Weathering, Extreme Temperature Variations, And Compression Set
An Aluminum Alloy Reinforcement Is Molded Into Each Insert Half For Extreme Loading
A Current Transfer Tab Is Included With All Standard Suspensions To Provide A Direct Electrical Bond Between The Opgw And A Ground Lead
The Current Transfer Tab Is Captured Between The Outer Rods Of The Opgw And The Srr, Simplifying Installation As No Fasteners Are Required And Over-Torquing Is Avoided
Housing Assembly, Srr, And Outer Rods Are Made From A High-Strength Aluminum Alloy
An Optional Ground Wire Assembly Can Be Included With The Suspension
Srr And Outer Rods Cannot Be Reused. Hardware Components Can Be Reused If They Are In Good Condition
The Fiberlign Suspension Has Been Thoroughly Tested For Vibration, Mechanical Loading, And Optical Attenuation In Accordance With Ieee Standard 1138 And Ieee Standard 1591.1
