DCD 42600-000 Tuf-lugger Frame with Winch
Available*
Item # 30509302
Model # 42600-000
$10,501.97
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Puller Accessories
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

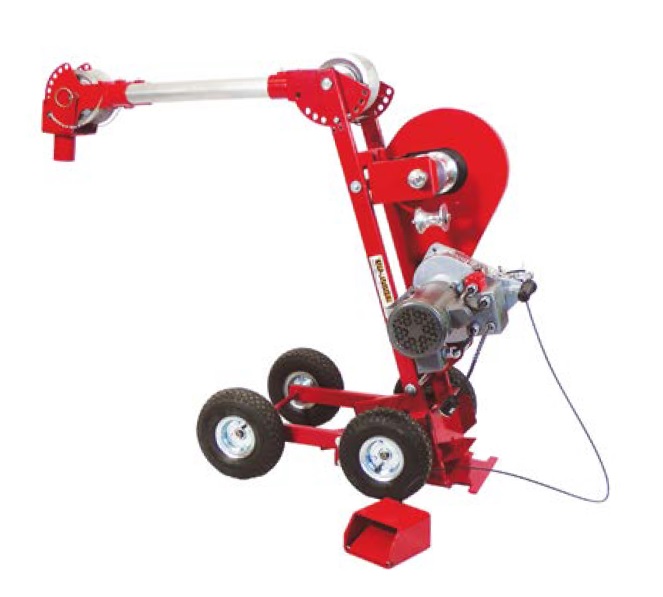

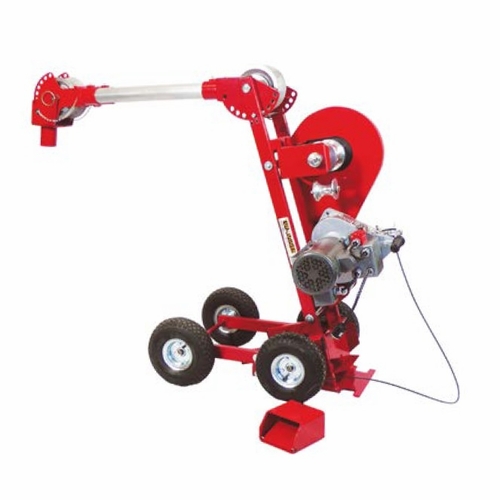

DCD 42600-000 Tuf-lugger Frame with Winch
DCD 42600-000 Tuf-lugger Frame with Winch
Part # 42600-000 Description Tuf-lugger Frame with Winch Power Info 115V, 10 amp (Requirement) Maximum Pulling Force 5,500 lb Maximum Speed 9.3 ft per minute Work Cycle 15 minutes per hour Maximum Height Reach 6-1/2 ft Weight 237 lb
The DCD TUF-Lugger™ is a cable puller that is designed to accommodate most pulling requirements up to a 5,500 lb load.
The unit is fully assembled and is mounted on four wheels making it portable and easy to move into any pulling location. It includes a foot pedal start/stop switch, four duct guides to suit 2", 3", 3-1/2", and 4" Schedule 40 duct, and a steel tool box carrying case.
The TUF-Lugger™ is driven by a removable TUF-Lugger™ Lite (41000-500), which can also be used for other applications. The frame is fitted with a feed-out sheave, which allows the operator to stand clear of the line of pull. An optional load cell indicator with monitoring software can also be installed.
There are two arms which combine to allow access to both overhead and underground ducting.
Note: This product is not to be used for any purpose other than pulling cable through conduit. A duct guide must always be used in order to lock the unit into position - without this, it is possible or likely that the entire unit will lift off the floor and may cause damage or severe injury.
DCD 42600-000 Tuf-lugger Frame with Winch
Part # 42600-000 Description Tuf-lugger Frame with Winch Power Info 115V, 10 amp (Requirement) Maximum Pulling Force 5,500 lb Maximum Speed 9.3 ft per minute Work Cycle 15 minutes per hour Maximum Height Reach 6-1/2 ft Weight 237 lb
The DCD TUF-Lugger™ is a cable puller that is designed to accommodate most pulling requirements up to a 5,500 lb load.
The unit is fully assembled and is mounted on four wheels making it portable and easy to move into any pulling location. It includes a foot pedal start/stop switch, four duct guides to suit 2", 3", 3-1/2", and 4" Schedule 40 duct, and a steel tool box carrying case.
The TUF-Lugger™ is driven by a removable TUF-Lugger™ Lite (41000-500), which can also be used for other applications. The frame is fitted with a feed-out sheave, which allows the operator to stand clear of the line of pull. An optional load cell indicator with monitoring software can also be installed.
There are two arms which combine to allow access to both overhead and underground ducting.
Note: This product is not to be used for any purpose other than pulling cable through conduit. A duct guide must always be used in order to lock the unit into position - without this, it is possible or likely that the entire unit will lift off the floor and may cause damage or severe injury.
