DCD 42700-010G Fiber Cable Puller, Gas with hitch mount base
Available*
Item # 30509310
Model # 42700-010G
$10,033.71
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

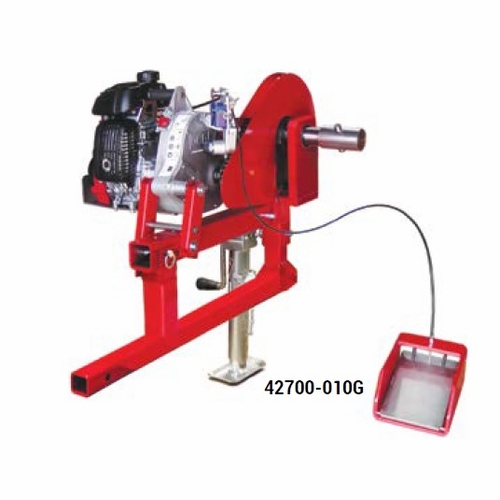

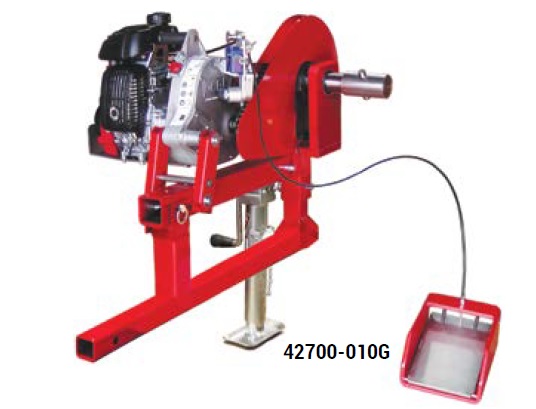

DCD 42700-010G Fiber Cable Puller, Gas with hitch mount base
DCD 42700-010G Fiber Cable Puller, Gas with hitch mount base
Part # 42700-010G Description Fiber Cable Puller (Gas) w/ Hitch Base Weight 175 lb
Engine 4-Stroke Honda GXH-50cc Work Cycle 100% Continuous Work Clutch Centrifugal Clutch Maximum Pulling Force 2-1/4 inch Capstan 2,200 lb Maximum Pulling Force 7-1/4 inch Capstan 2,933 lb Maximum Pulling Force 30 inch Capstan 880 lb Maximum Pulling Force 42 inch Capstan 6600 lb
Maximum Pulling Speed 2-1/4 inch Capstan 40 ft per minute Maximum Pulling Speed 7-1/4 inch Capstan 34 ft per minute Maximum Pulling Speed 30 inch Capstan 114 ft per minute Maximum Pulling Speed 42 inch Capstan 152 ft per minute
The Fiber Cable Puller is a simple, easy to use cable puller that is designed to accommodate industry standard sheaves of 7-1/4 inch, 30 inch, or 42 inch diameter specifically intended for use with fiber optic cables requiring a minimum bend radius.
The unit is powered by the TUF-Lugger™ Lite Lifting - Gas (41000-400) providing a gas option as a simpler, lighter, less costly option than a typical hydraulic puller.
Best of all, the Fiber Cable Puller is assembled using the Vertical Pull Support (42200-050) and the TUF-Lugger™ Lite (41000 series), which includes the standard capstan. Simply dismount the winch and install the standard capstan and the winch can be used as a stand-alone item, which comes with a 2-1/4 inch capstan providing a 2,200 lb pulling force.
DCD 42700-010G Fiber Cable Puller, Gas with hitch mount base
Part # 42700-010G Description Fiber Cable Puller (Gas) w/ Hitch Base Weight 175 lb
Engine 4-Stroke Honda GXH-50cc Work Cycle 100% Continuous Work Clutch Centrifugal Clutch Maximum Pulling Force 2-1/4 inch Capstan 2,200 lb Maximum Pulling Force 7-1/4 inch Capstan 2,933 lb Maximum Pulling Force 30 inch Capstan 880 lb Maximum Pulling Force 42 inch Capstan 6600 lb
Maximum Pulling Speed 2-1/4 inch Capstan 40 ft per minute Maximum Pulling Speed 7-1/4 inch Capstan 34 ft per minute Maximum Pulling Speed 30 inch Capstan 114 ft per minute Maximum Pulling Speed 42 inch Capstan 152 ft per minute
The Fiber Cable Puller is a simple, easy to use cable puller that is designed to accommodate industry standard sheaves of 7-1/4 inch, 30 inch, or 42 inch diameter specifically intended for use with fiber optic cables requiring a minimum bend radius.
The unit is powered by the TUF-Lugger™ Lite Lifting - Gas (41000-400) providing a gas option as a simpler, lighter, less costly option than a typical hydraulic puller.
Best of all, the Fiber Cable Puller is assembled using the Vertical Pull Support (42200-050) and the TUF-Lugger™ Lite (41000 series), which includes the standard capstan. Simply dismount the winch and install the standard capstan and the winch can be used as a stand-alone item, which comes with a 2-1/4 inch capstan providing a 2,200 lb pulling force.
