DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3
DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3

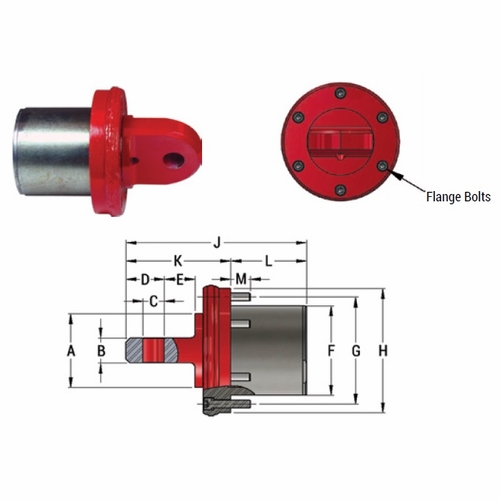

Part # 00503-330 Stub-e-dub Lite Swivel Type 3 - Flange/Lug 3:1 Safe Working Load 60,000 lb Ultimate Load 180,000 lb A 4 3/4 inches B 1 5/8 inches C 1 3/8 inches D 2 15/32 inches E 2 inches F 5 3/4 inches G 6 7/8 inches H 8 inches J 11 19/32 inches K 6 3/4 inches L 4 7/8 inches M 1 1/4 inches Flange Bolts 6 x 1/2 inch UNC Weight 66.0 lb
Type 3 - Flange/Lug This style is specifically designed for directional drilling applications. It is intended to be mounted internally into a back reamer using a bolt flange. This type of swivel permits rotation of the drill pipe while protecting the utility from twisting.
DCD 00503-330 Stub-e-dub Lite Swivel Swl 60,000 Lb Type 3

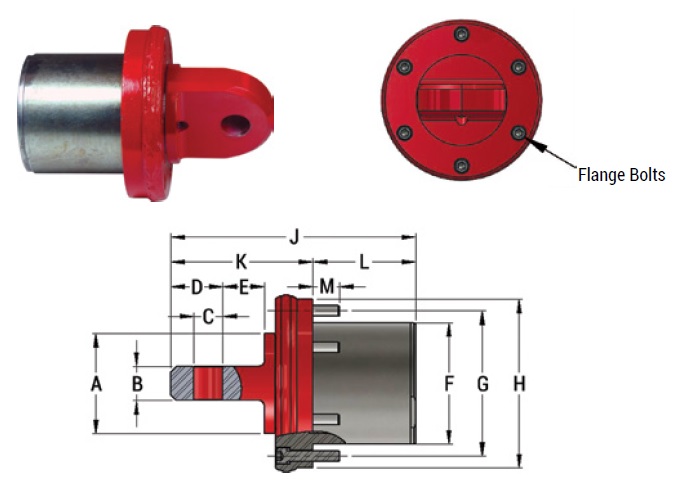

Part # 00503-330 Stub-e-dub Lite Swivel Type 3 - Flange/Lug 3:1 Safe Working Load 60,000 lb Ultimate Load 180,000 lb A 4 3/4 inches B 1 5/8 inches C 1 3/8 inches D 2 15/32 inches E 2 inches F 5 3/4 inches G 6 7/8 inches H 8 inches J 11 19/32 inches K 6 3/4 inches L 4 7/8 inches M 1 1/4 inches Flange Bolts 6 x 1/2 inch UNC Weight 66.0 lb
Type 3 - Flange/Lug This style is specifically designed for directional drilling applications. It is intended to be mounted internally into a back reamer using a bolt flange. This type of swivel permits rotation of the drill pipe while protecting the utility from twisting.
