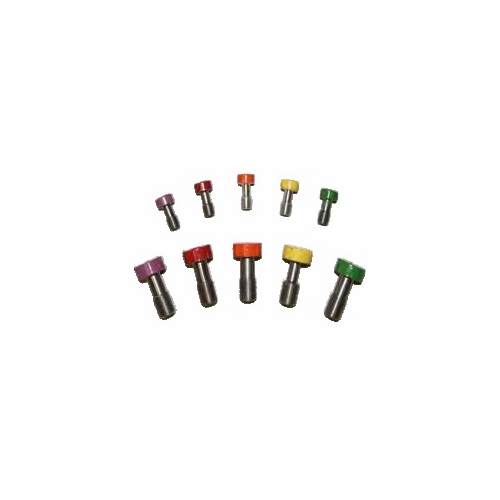

DCD 00566-250 Breakaway Pin Kit 2,500 Kg 5/kit
Available*
Item # 30513190
Model # 00566-250
$112.62
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
SWIVELS
Tools
Line Construction- Placing
Swivels- Pulling- Rodding
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD DESIGN/CABLE SPINNING EQUIPMENT 00566-250 Breakaway Pin Kit 2,500 Kg 5/kit NEW
These products are designed to protect polyethylene ducting from overload during installation by directional drilling and are used between the pullback swivel and the duct puller. The connectors are a three part product, held together by a group of pins. The pins are designed to break in tension at a specific load. The assembly of the connector is completed by using one or more of the breakaway pins. The sum of the values of the pins is the value at which the connector will come apart. If a single 1,000 lb. pin is used, the connector will come apart at 1,000 lbs. If 3 pins of the same value were used, the connector would come apart at 3,000 lbs. Different pin values can be mixed and matched to create a number of different values, all in the same connector. Metric pins are also available. See following pages for pin combinations.
These products are designed to protect polyethylene ducting from overload during installation by directional drilling and are used between the pullback swivel and the duct puller. The connectors are a three part product, held together by a group of pins. The pins are designed to break in tension at a specific load. The assembly of the connector is completed by using one or more of the breakaway pins. The sum of the values of the pins is the value at which the connector will come apart. If a single 1,000 lb. pin is used, the connector will come apart at 1,000 lbs. If 3 pins of the same value were used, the connector would come apart at 3,000 lbs. Different pin values can be mixed and matched to create a number of different values, all in the same connector. Metric pins are also available. See following pages for pin combinations.
