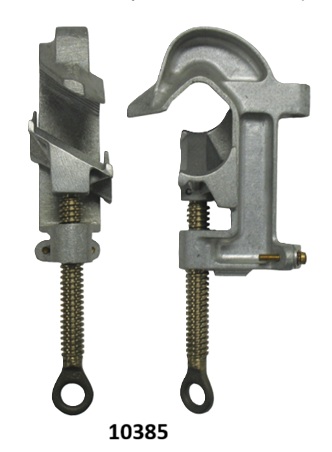

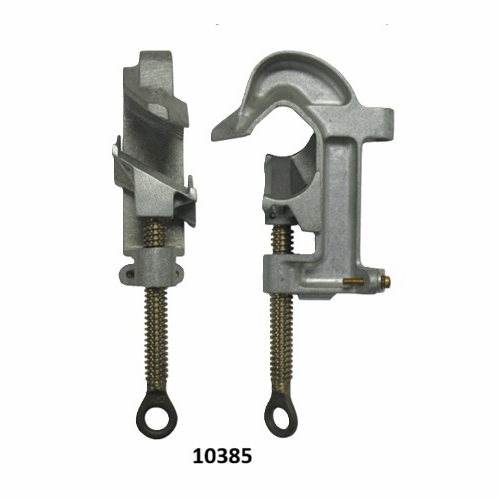

HASTINGS 10385 30° Angle Ground Clamp
HASTINGS 10385 30° Angle Ground Clamp
HASTINGS 10385 30° Angle Ground Clamp
30° C-HEAD GROUND CLAMPS - The 30° angle ground clamp allows linemen and substation mechanics to easily install grounds beyond the normal reach. - With the 30° angle clamp, linemen and substation mechanics can hold their shotgun stick to nearly a horizontal position and install this ground clamp.
SPECIFICATIONS: o MAIN LINE RANGE MAXIMUM / MINIMUM : 2" DIA CABLE OR BUS / #4 SOL / 18" DIA. o MAXIMUM SIZE CABLE : 4/0 o MAXIMUM FAULT CURRENT RATING : 43KA@ 15 CYCLES - 30KA@ 30 CYCLES o TERMINAL TYPE : THREADED
WEIGHT : 2.2 LB
