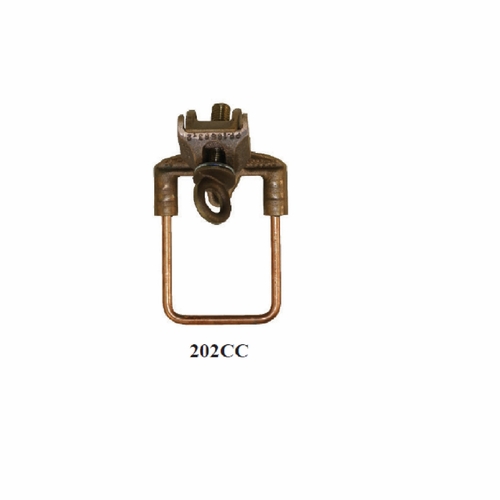

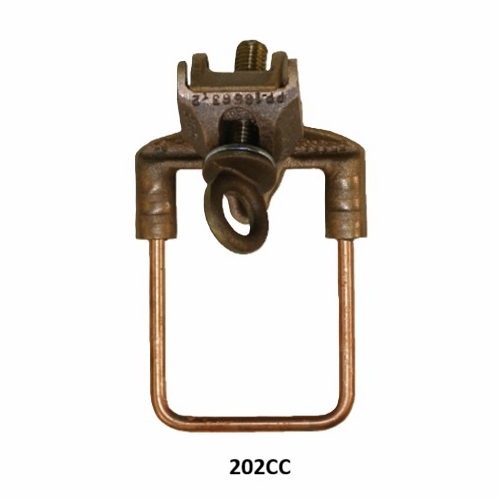

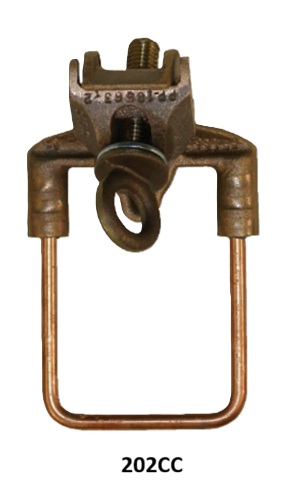

HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
Available*
Item # 30848355
Model # 202CC
$94.50
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
STANDARD HOT STIRRUP - Recommended for copper lines - Easily installed with all shotgun type hot sticks - Inside loop width - 2-1/2 inches - Maximum installation torque - 200 inch pounds - Stirrups are crimped with a 30 ton hydraulic press
Specifications: - Type of Connection CU - CU - Main Line Size : Maximum - Bare-400 MCM, Minimum - Bare-6 SOL - Stirrup Bar Diameter: 1/4 inch CU - Maximum Amp Rating : 380 Weight 1.5 lbs.
NOTE: ADD THE SUFFIX "XB" FOR FACTORY INSTALLED INHIBITOR AND INDIVIDUAL PACKAGING ADD THE SUFFIX "BGP" FOR TIN PLATE (MINIMUM ORDER 100 UNITS)
HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
HASTINGS 202CC Standard Hot Line Stirrup 6 Sol. - 400 MCM
STANDARD HOT STIRRUP - Recommended for copper lines - Easily installed with all shotgun type hot sticks - Inside loop width - 2-1/2 inches - Maximum installation torque - 200 inch pounds - Stirrups are crimped with a 30 ton hydraulic press
Specifications: - Type of Connection CU - CU - Main Line Size : Maximum - Bare-400 MCM, Minimum - Bare-6 SOL - Stirrup Bar Diameter: 1/4 inch CU - Maximum Amp Rating : 380 Weight 1.5 lbs.
NOTE: ADD THE SUFFIX "XB" FOR FACTORY INSTALLED INHIBITOR AND INDIVIDUAL PACKAGING ADD THE SUFFIX "BGP" FOR TIN PLATE (MINIMUM ORDER 100 UNITS)
