HASTINGS 21056 Substation Ground Clamp
Available*
Item # 30848520
Model # 21056
$425.25
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

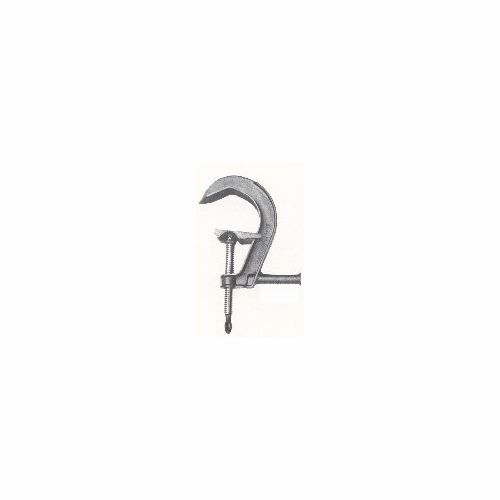

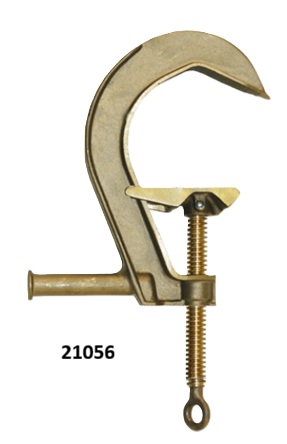

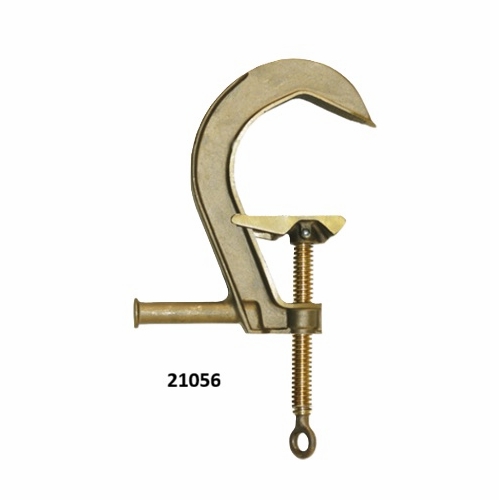

HASTINGS 21056 Substation Ground Clamp
HASTINGS 21056 Substation Ground Clamp
HASTINGS 21056 Substation Ground Clamp
GROUND CLAMPS FOR SUBSTATION GROUNDING - BRONZE - The grounding clamps with hanger studs enable substation maintenance crews to utilize their portable grounds on large bus by providing a fault current rated hanger stud as part of the clamp (Clamp numbers 21056, 21546-1, 12282) - Use of the hanger stud clamps could save cost of special ground assemblies made up for each substation
Specifications - Main Line Range : Maximum 5" O.D.; Minimum 1-1/4" O.D. - Stud IS 3.25" Long - Max Fault Current Rating : 54KA@ 15 Cycles, 39KA@ 30 Cycles
Weight : 4.5 lbs.
HASTINGS 21056 Substation Ground Clamp
HASTINGS 21056 Substation Ground Clamp
GROUND CLAMPS FOR SUBSTATION GROUNDING - BRONZE - The grounding clamps with hanger studs enable substation maintenance crews to utilize their portable grounds on large bus by providing a fault current rated hanger stud as part of the clamp (Clamp numbers 21056, 21546-1, 12282) - Use of the hanger stud clamps could save cost of special ground assemblies made up for each substation
Specifications - Main Line Range : Maximum 5" O.D.; Minimum 1-1/4" O.D. - Stud IS 3.25" Long - Max Fault Current Rating : 54KA@ 15 Cycles, 39KA@ 30 Cycles
Weight : 4.5 lbs.
