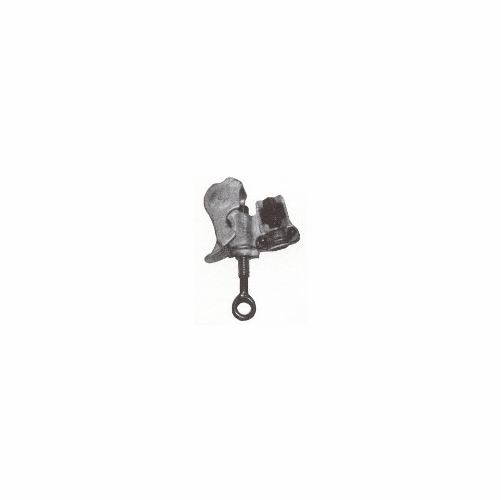

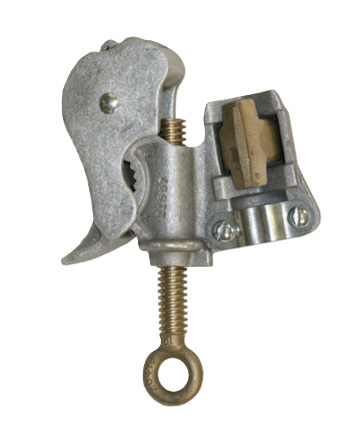

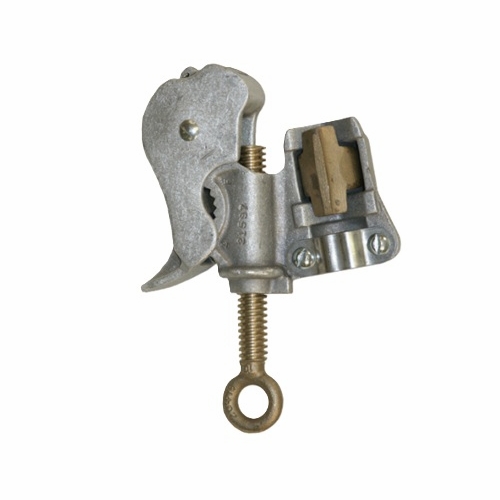

HASTINGS 4706-4 Duck Bill Ground Clamp
Available*
Item # 30850240
Model # 4706-4
$155.93
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 4706-4 Duck Bill Ground Clamp
HASTINGS 4706-4 Duck Bill Ground Clamp
HASTINGS 4706-4 Duck Bill Ground Clamp
DUCK BILL GROUND CLAMPS - Aluminum - All Cable Ferrules for connecting the grounding cables to the clamps are compression type. - Very stringent requirements are specified by the ASTM F855 standard, and all our clamps, cables and ferrules exceed the values of this standard.
SPECIFICATIONS: - SERRATED JAWS - MAIN LINE RANGE MAXIMUM : 954 MCM ACSR / 1.15 DIA - MAIN LINE RANGE MINIMUM : 6 SOLID / .16 DIA - MAXIMUM SIZE CABLE : 4/0 - MAXIMUM FAULT CURRENT RATING : 43KA@15 CYCLES / 30KA@30 CYCLES - TERMINAL TYPE : Bolted - WEIGHT 1.5 lbs.
HASTINGS 4706-4 Duck Bill Ground Clamp
HASTINGS 4706-4 Duck Bill Ground Clamp
DUCK BILL GROUND CLAMPS - Aluminum - All Cable Ferrules for connecting the grounding cables to the clamps are compression type. - Very stringent requirements are specified by the ASTM F855 standard, and all our clamps, cables and ferrules exceed the values of this standard.
SPECIFICATIONS: - SERRATED JAWS - MAIN LINE RANGE MAXIMUM : 954 MCM ACSR / 1.15 DIA - MAIN LINE RANGE MINIMUM : 6 SOLID / .16 DIA - MAXIMUM SIZE CABLE : 4/0 - MAXIMUM FAULT CURRENT RATING : 43KA@15 CYCLES / 30KA@30 CYCLES - TERMINAL TYPE : Bolted - WEIGHT 1.5 lbs.
