Hastings 5328-1 8' Elbow Puller With Torgue Handle New
Available*
Item # 30850655
Model # 5328-1
$718.74
![Peac Financing](https://sep.turbifycdn.com/ty/cdn/phonetx/ptx-peac-financing.png)
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
![CA Prop 65 Warning](https://sep.turbifycdn.com/ty/cdn/phonetx/exclamation.png?t=1720716869&)
Product Description
Hastings Fiber Glass Products 5328-1 Elbow Puller 8 Ft With Torque Handle
Impact Style Elbow Puller
O Designed As A Tool For Safely Removing And Installing Elbows On Transformers And Switch Gear
O Positive Latch, Spring Loaded Fiberglass Operating Rod Locks Gripper Securely To Elbow By Rotating The Tool To The Right. --This Positive Latch Feature Allows Operator To Position Elbow In Either Direction Once Elbow Is Pulled Without Loosening Its Grip. --After Elbow Is Positioned In Its Proper Place, Gripper Is Released By Pulling Operating Rod Towards The Operator And Rotating To The Left.
O Slide Handle Is Used To Impact Elbow Away From Bushing. --The Slide Weight Can Also Be Utilized To "Seat" The Elbow In Its Normal Position By Impacting The Slide Handle Towards The Elbow. --The Slide Handle Weighs 5 Pounds And Is Plastisol Coated. --Painted Grit Is Used On Hand Area To Provide Positive Grip.
O The Elbow Puller Can Be Ordered With A Torque Handle Feature Factory Installed. --This Feature Allows The Operator An Opportunity To Break The Seal Between The Elbow And Bushing Insert Before Attempting To Remove The Elbow. --Handle Is Spring Loaded For Storage Purposes.
O Grippers Are Not Included.

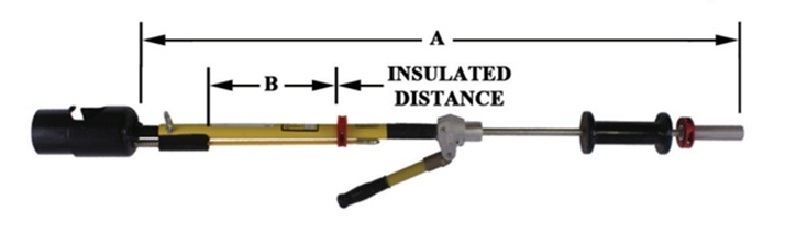

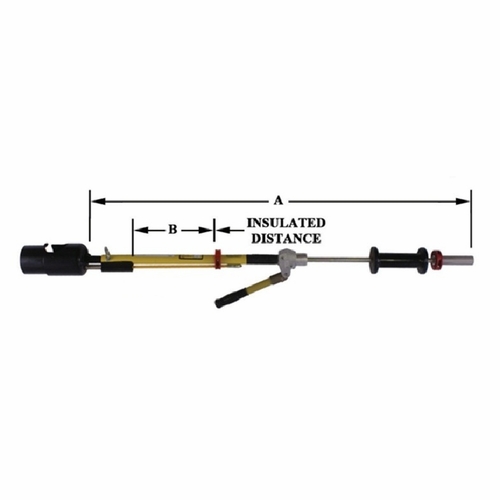

Specifications: 8' Elbow Puller With Torque Handle O Dimensional Reference A* : 96 " O Dimensional Reference B : 59-1/2" O Case : 05-822
*Dimension A Is Shown Without Gripper. Overall Length W/Gripper Varies According To Gripper When Attached.
Weight : 13 Lbs
*** Oversized - Ships Via Freight ***
Impact Style Elbow Puller
O Designed As A Tool For Safely Removing And Installing Elbows On Transformers And Switch Gear
O Positive Latch, Spring Loaded Fiberglass Operating Rod Locks Gripper Securely To Elbow By Rotating The Tool To The Right. --This Positive Latch Feature Allows Operator To Position Elbow In Either Direction Once Elbow Is Pulled Without Loosening Its Grip. --After Elbow Is Positioned In Its Proper Place, Gripper Is Released By Pulling Operating Rod Towards The Operator And Rotating To The Left.
O Slide Handle Is Used To Impact Elbow Away From Bushing. --The Slide Weight Can Also Be Utilized To "Seat" The Elbow In Its Normal Position By Impacting The Slide Handle Towards The Elbow. --The Slide Handle Weighs 5 Pounds And Is Plastisol Coated. --Painted Grit Is Used On Hand Area To Provide Positive Grip.
O The Elbow Puller Can Be Ordered With A Torque Handle Feature Factory Installed. --This Feature Allows The Operator An Opportunity To Break The Seal Between The Elbow And Bushing Insert Before Attempting To Remove The Elbow. --Handle Is Spring Loaded For Storage Purposes.
O Grippers Are Not Included.
Specifications: 8' Elbow Puller With Torque Handle O Dimensional Reference A* : 96 " O Dimensional Reference B : 59-1/2" O Case : 05-822
*Dimension A Is Shown Without Gripper. Overall Length W/Gripper Varies According To Gripper When Attached.
Weight : 13 Lbs
*** Oversized - Ships Via Freight ***
