HASTINGS 5571 Convertible Cross Arm Gin with Mast
Available*
Item # 30851105
Model # 5571
$2,268.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 5571 Convertible Cross Arm Gin with Mast
HASTINGS 5571 Convertible Cross Arm Gin with Mast
HASTINGS 5571 Convertible Cross Arm Gin with Mast

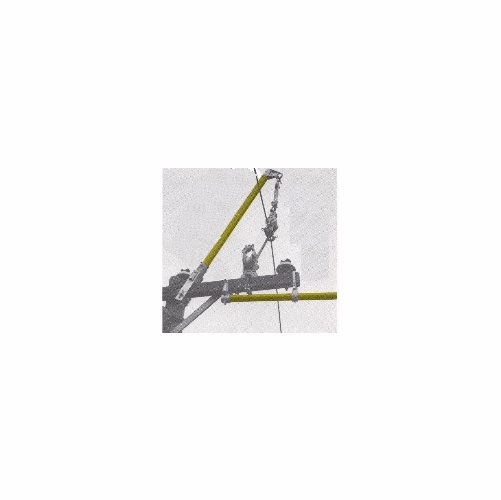

CONVERTIBLE CROSS ARM GIN - Base assembly will accept either the 2-1/2" O.D. x 31" long mast or 3" O.D. x 58" long mast. This feature allows operating personnel maximum lifting heights and safe working load limits. - Base assembly is constructed with aluminum alloy parts and base plates are reversible to allow gin to be used on 3-1/2" wide x 4-1/2" high or 4-3/4" wide x 5-3/4" high cross arms. o Aluminum plate support on base prevents damage to cross arms in load bearing areas.

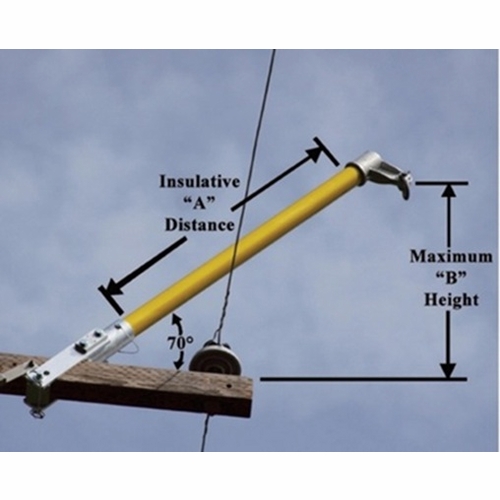

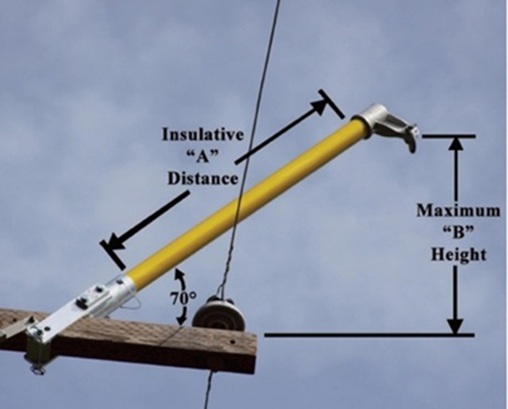

SPECIFICATIONS: - COMPLETE GIN ASSEMBLY - With ITEM 5574 BASE and ITEM 5573 MAST - Dimension "A" : 48-3/4 inches - Dimension "B" : 54 inches - Working Load Limit : 800 lbs
WEIGHT : 27 LBS
HASTINGS 5571 Convertible Cross Arm Gin with Mast
HASTINGS 5571 Convertible Cross Arm Gin with Mast
CONVERTIBLE CROSS ARM GIN - Base assembly will accept either the 2-1/2" O.D. x 31" long mast or 3" O.D. x 58" long mast. This feature allows operating personnel maximum lifting heights and safe working load limits. - Base assembly is constructed with aluminum alloy parts and base plates are reversible to allow gin to be used on 3-1/2" wide x 4-1/2" high or 4-3/4" wide x 5-3/4" high cross arms. o Aluminum plate support on base prevents damage to cross arms in load bearing areas.
SPECIFICATIONS: - COMPLETE GIN ASSEMBLY - With ITEM 5574 BASE and ITEM 5573 MAST - Dimension "A" : 48-3/4 inches - Dimension "B" : 54 inches - Working Load Limit : 800 lbs
WEIGHT : 27 LBS
