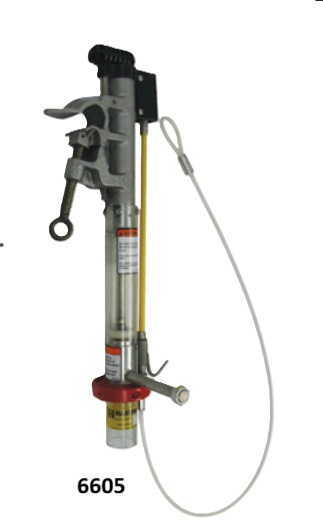

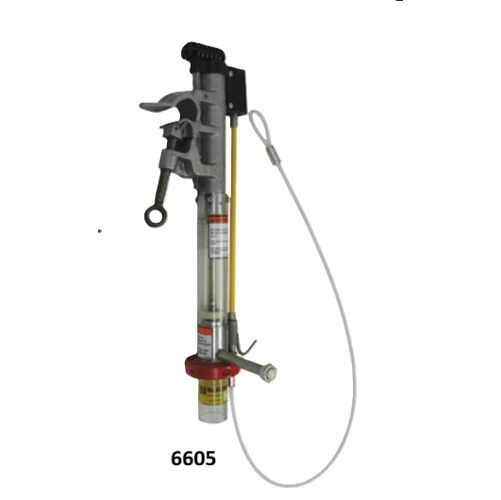

HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud
Available*
Item # 30851690
Model # 6605
$1,124.55
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud
HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud
HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud Weight 6.2 lbs.
SPECIFICATIONS Load Pick-Up Tool / Stud Main Line Range Minimum 6 Solid 0.16 Diameter Maximum 1033 MCM 1.25 Diameter KV Rating 29.2KV Maximum Current Rating 300A Maximum Weight 6.2 lbs.
LOAD PICK UP TOOLS Two models available Load Pick Up Tool for installation on a cable assembly (clamp and cable sold separately) Load Pick Up Tool with stud to utilize your ready made jumpers Both models have a nominal rating of 27KV* Current Rating 300 Amps * Note: While the maximum rating for each model is stated above, the actual rating will be the lesser of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0 AWG, the current rating will be reduced accordingly.
Can be installed with a shotgun stick or with rubber gloves, in accordance with your company’s safe work practices Both tools come completely self contained with cocking tool, firing lanyard, and safety latch The head casting is aluminum alloy and also serves as a storage port for the cocking tool Clear plastic housing below the head casting allows for quick, easy visual inspection Each tool comes complete with an operating and maintenance manual
Note: Load Pick Up Tools are not load break devices Note: For use on 15KV or 25KV systems only
HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud
HASTINGS 6605 Load Pick-Up Tool, 27KV, with Stud Weight 6.2 lbs.
SPECIFICATIONS Load Pick-Up Tool / Stud Main Line Range Minimum 6 Solid 0.16 Diameter Maximum 1033 MCM 1.25 Diameter KV Rating 29.2KV Maximum Current Rating 300A Maximum Weight 6.2 lbs.
LOAD PICK UP TOOLS Two models available Load Pick Up Tool for installation on a cable assembly (clamp and cable sold separately) Load Pick Up Tool with stud to utilize your ready made jumpers Both models have a nominal rating of 27KV* Current Rating 300 Amps * Note: While the maximum rating for each model is stated above, the actual rating will be the lesser of these values, or of the rating of the components used with the Load Pick Up Tool. If 15KV jumper cable is being used, the entire assembly will be rated at 15KV. If the jumper cable is less than 2/0 AWG, the current rating will be reduced accordingly.
Can be installed with a shotgun stick or with rubber gloves, in accordance with your company’s safe work practices Both tools come completely self contained with cocking tool, firing lanyard, and safety latch The head casting is aluminum alloy and also serves as a storage port for the cocking tool Clear plastic housing below the head casting allows for quick, easy visual inspection Each tool comes complete with an operating and maintenance manual
Note: Load Pick Up Tools are not load break devices Note: For use on 15KV or 25KV systems only
