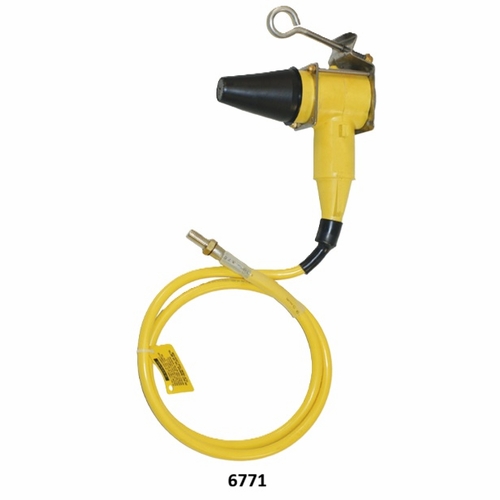

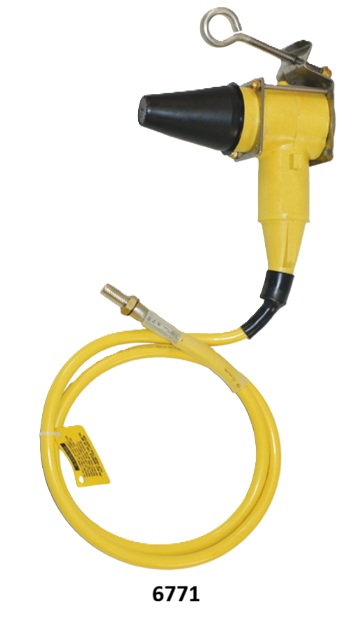

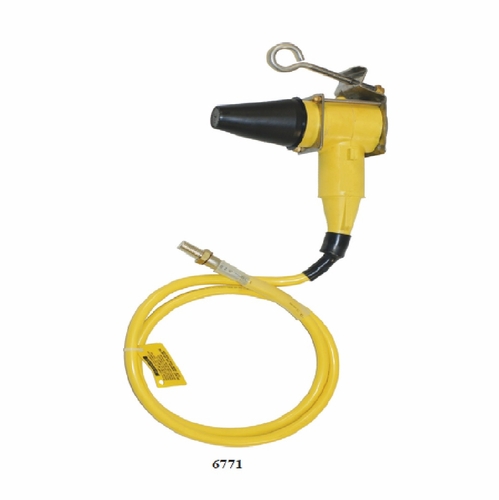

HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
Available*
Item # 30852160
Model # 6771
$2,532.60
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
SPECIFICATIONS: - 15KV Grounded Parking Stand - With Threaded Ferrule - Case - 01-4007 or 7254 - Weight 5.5 lbs.
GROUNDED PARKING STAND ASSEMBLIES - 15KV - For padmount transformer applications - Pre-Assembled - All assemblies utilize 6’ of 1/0 yellow ground cable - Versatility of the ferrule termination, (threaded or non-threaded) allows for the selection of a wide variety of ground clamps - Lug termination on the bushing and the ferrule termination are both sealed with heat shrink, which prevents the entry of moisture into the connection, plus provides added stress relief to the termination - All assemblies are fault current rated at 10KA for 10 cycles - To order a grounded parking stand plus a ground clamp, place a (-) behind the parking stand number then your ground clamp number - Example: 6771-21575
HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
HASTINGS 6771 Grounded Parking Stand, 15KV, with Threaded Ferrule
SPECIFICATIONS: - 15KV Grounded Parking Stand - With Threaded Ferrule - Case - 01-4007 or 7254 - Weight 5.5 lbs.
GROUNDED PARKING STAND ASSEMBLIES - 15KV - For padmount transformer applications - Pre-Assembled - All assemblies utilize 6’ of 1/0 yellow ground cable - Versatility of the ferrule termination, (threaded or non-threaded) allows for the selection of a wide variety of ground clamps - Lug termination on the bushing and the ferrule termination are both sealed with heat shrink, which prevents the entry of moisture into the connection, plus provides added stress relief to the termination - All assemblies are fault current rated at 10KA for 10 cycles - To order a grounded parking stand plus a ground clamp, place a (-) behind the parking stand number then your ground clamp number - Example: 6771-21575
