HASTINGS 6871 Distribution/Transmission Grounding Set with 1/0 Cable
Available*
Item # 30852440
Model # 6871
$3,024.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS 6871 Distribution/Transmission Grounding Set with 1/0 Cable
HASTINGS 6871 Distribution/Transmission Grounding Set with 1/0 Cable
HASTINGS 6871 Distribution/Transmission Grounding Set with 1/0 Cable - Weight 56.0 lbs.
DISTRIBUTION / SUB TRANSMISSION GROUNDING SET - Factory assembled and can be used on a three phase wye or delta system - The grounding set provides jumper lengths adequate for crossarm construction and armless (narrow profile) construction - The grounding set includes a grounding cluster bar which enables the user to provide "single point" grounding - Conductor Range - ground set can be used on No. 6 solid (.16 O.D.) through 1,033 MCM ACSR (1.5" O.D.) - Grounding Jumpers - jumpers are assembled with bright yellow neoprene jacketed copper grounding cable. This ground cable is very flexible in cold weather. - Fault Current Rating - grounding sets can be ordered with proper cable size to match customers fault current needs

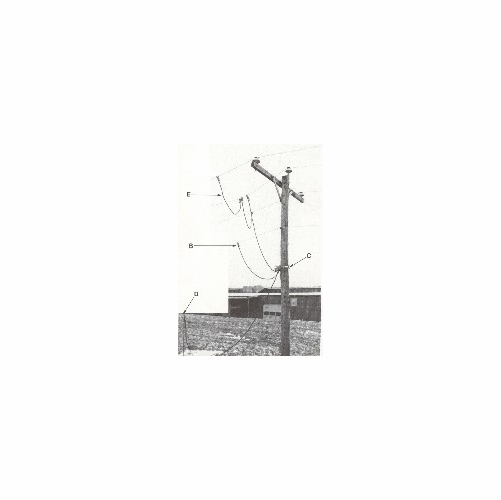

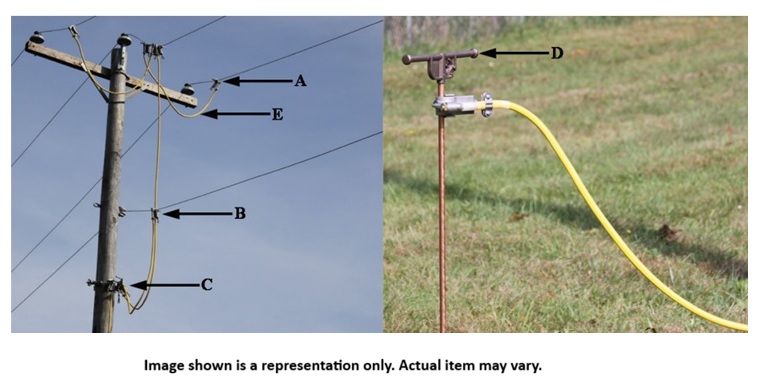

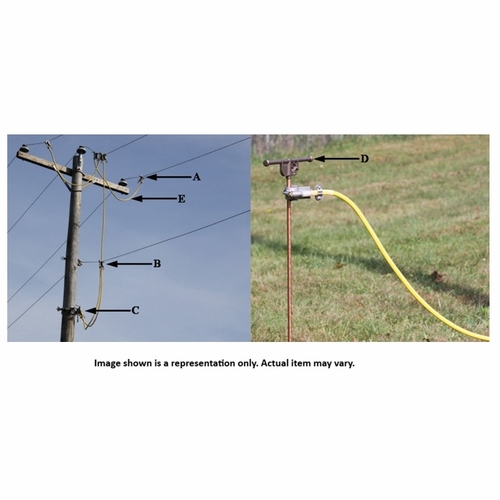

SPECIFICATIONS: - Grounding Set with 1/0 Cable - Each assembly contains the following: A: Quantity 10 - #21575 Ground Clamps B: Quantity 10 - Threaded Ferrules C: Quantity 1 - #6767 Grounding Cluster Bar D: Quantity 1 - #4370 Screw Ground Rod E: Quantity 3 - 6 Feet Yellow Grounding Cable E: Quantity 1 - 12 Feet Yellow Grounding Cable E: Quantity 1 - 30 Feet Yellow Grounding Cable F: Quantity 3 - #13190-1 Hanger Studs -- Fault Current Rating 21, 000 Amps - 15 Cycles - Weight 56.0 lbs.
