MEGGER 659600 CHM600 Power Cable Height Meter 6 Lines 50 ft SUPARULE
MEGGER 659600 CHM600 Power Cable Height Meter 6 Lines 50 ft SUPARULE
MEGGER 659600 CHM600 Power Cable Height Meter 6 Lines 50 ft SUPARULE

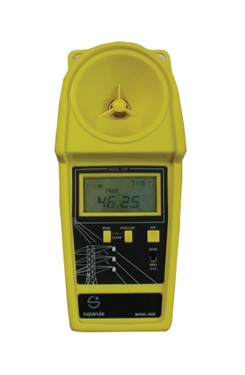

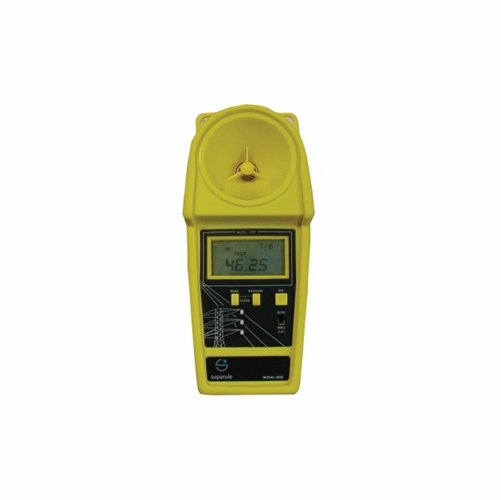

DESCRIPTION The CHM Series of Cable Height Meters utilize ultrasonic techniques to determine the height of up to six overhead cables and wires. The instruments are designed to address specific measuring requirements on cables up to 75 feet (23 m). The CHM600 (C/N 659600) and CHM600E (C/N 659600E) are designed primarily for power cable applications, while the CHM2000 is designed for telecommunication applications.
SPECIFICATIONS Resolution 1/4 in. (5 mm) if < 10 m 1/2 in. (10 mm) if > 10 m
Accuracy Typically less than 0.5% error ±2 digits
Power source 9 volt alkaline leak-proof battery (included)
Operating Temperature 14º F to 104º F (-10º C to 40º C) with compensation over the full range.
Storage Store in dry area. Do not expose to extreme temperature. Use only leak proof batteries.
Battery Life > 50,000 Measurements
Dimensions 3 H x 4 W x 8.5 D in. (70 H x 100 W x 205 D mm)
Weight 1.1 lb (.5 kg)
