GMP General Machine Products 89760 Cable Pusher for Power Cable
GMP General Machine Products 89760 Cable Pusher for Power Cable
P/N 89760 GMP General Machine Products Cable Pusher For 1.25 - 6 in. (30-150mm) Power Cable Weight 441 lbs. (200kg)

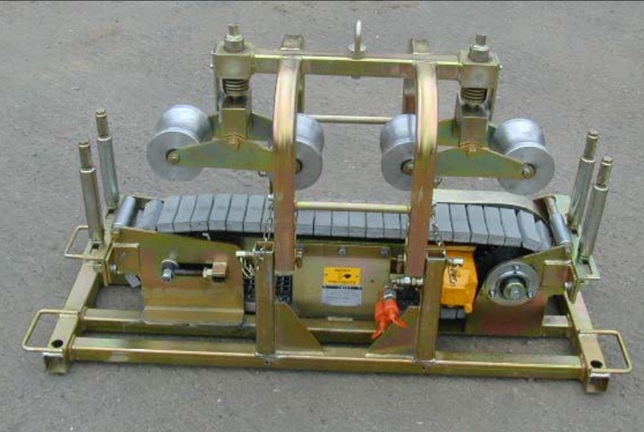

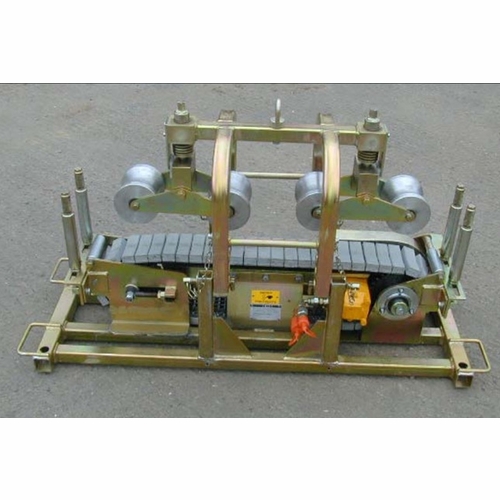

The GMP Cable Pusher has been designed to assist the laying of electrical cables. The unit has a profiled drive system to grip the cable, with a load applicator of adjustable upper rollers. The unit is hydraulically driven and is powered by an Optional Portable Hydraulic Power Pack or user-provided hydraulics. Control Valve Modules and Power Pack are offered separately.
Specifications Cable Size: 1.25 -6 in. (30-150mm) O.D. Dimensions: 55 in. W x 20 in. L x 31 in. H (500mm W x 1390mm L x 770mm H) Max Push: 1543 lbs. (700kg) Max Speed: 33 ft. /min (10m/min) Controls: Single Lever for Push/Pull Operations Drive System: Hydraulic Min Hydraulic Requirement: 4.75 gpm/870 psi (18 Ltr/min at 60 bar) Weight: 441 lbs. (200kg)
Ordering Information
P/N Description Weight 89760 Cable Pusher for 1.25 - 6 in. (30-150mm) Power Cable 441 lbs. (200kg) 89761 Valve Control Module with Hoses 32 lbs. (14.5kg) 34519 Foot Control Valve and Hoses (single direction only) 75 lbs. (35kg) 32799 Hydraulic Power Pack 145 lbs. (66kg)
GMP General Machine Products 89760 Cable Pusher for Power Cable
P/N 89760 GMP General Machine Products Cable Pusher For 1.25 - 6 in. (30-150mm) Power Cable Weight 441 lbs. (200kg)
The GMP Cable Pusher has been designed to assist the laying of electrical cables. The unit has a profiled drive system to grip the cable, with a load applicator of adjustable upper rollers. The unit is hydraulically driven and is powered by an Optional Portable Hydraulic Power Pack or user-provided hydraulics. Control Valve Modules and Power Pack are offered separately.
Specifications Cable Size: 1.25 -6 in. (30-150mm) O.D. Dimensions: 55 in. W x 20 in. L x 31 in. H (500mm W x 1390mm L x 770mm H) Max Push: 1543 lbs. (700kg) Max Speed: 33 ft. /min (10m/min) Controls: Single Lever for Push/Pull Operations Drive System: Hydraulic Min Hydraulic Requirement: 4.75 gpm/870 psi (18 Ltr/min at 60 bar) Weight: 441 lbs. (200kg)
Ordering Information
P/N Description Weight 89760 Cable Pusher for 1.25 - 6 in. (30-150mm) Power Cable 441 lbs. (200kg) 89761 Valve Control Module with Hoses 32 lbs. (14.5kg) 34519 Foot Control Valve and Hoses (single direction only) 75 lbs. (35kg) 32799 Hydraulic Power Pack 145 lbs. (66kg)
