GMP General Machine Products 90070 Fiber Blowing Trailer Airbox Assembly
Available*
Item # 30935637
Model # 90070
$7,707.83
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BLOWER FIB
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

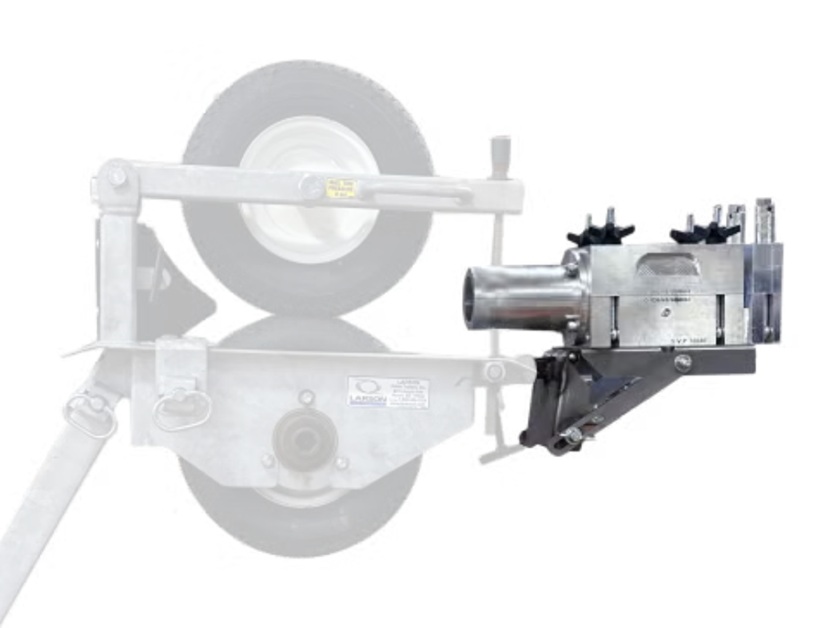

GMP General Machine Products 90070 Fiber Blowing Trailer Airbox Assembly

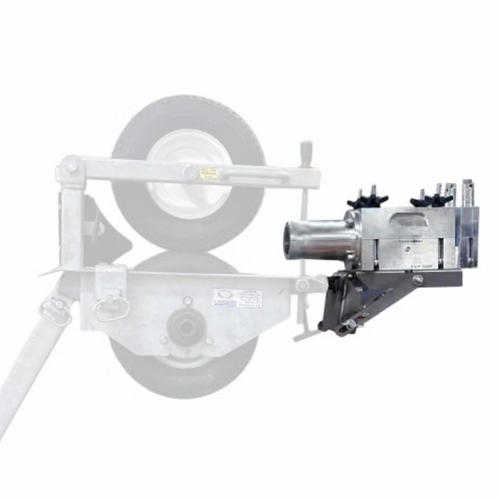

GMP General Machine Products 90070 Fiber Blowing Trailer Airbox Assembly
GMP General Machine Products 90070 Fiber Blowing Trailer Airbox Assembly
The 1-inch square tube receiver attachment is designed to adapt and function as a direct bolt-in solution for existing fiber blowing trailers. It enables these trailers to be compatible with the GMP Tornado airbox, duct clamps, cable guides, and seals. This attachment works seamlessly with all existing GMP Tornado duct clamps and seals.
Included components:
12 - 24 mm cable guides* Fiber cable blowing airbox Fiber blowing trailer adapter plate with adjustable distance and angle Airflow valve and pressure gauge assembly with a standard 2-jaw air hose fitting Klein Modbox storage case
- Specifications - Operating Capacities - Cable Size: .47-94 inches (12-24mm) O.D. (call for more sizes) - Sub Duct Size: .75 - 2.00 inches SDR (12 - 63mm O.D.)
- Pneumatic System - Air Hose Bore (min): 1 1/4 inches (32mm) - Operating Pressure: 175 psi (12 bar) - Flow: The air supply should be filtered, cooled and dry. For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar)
- Dimensions - In Case - Height: 28 inches - Length: 20 inches - Width: 23 inches - Weight: 77 lbs.
- Dimensions - Airbox Assembly - Height: 12 inches - Length: 12 inches - Width: 15 inches (17.5 inches with cable adapter) - Weight: 31.5 lbs* - *Cable adapter weight add 2.0 lbs
- Dimensions - Air Valve Assembly - Height: 4.25 inches - Length: 8.25 inches - Width: 20.5 inches - Weight: 9.5 lbs
