GMP General Machine Products 89003 Tornado Cable Blower Without Power Pack NEW
Available*
Item # 30936387
Model # 89003
$29,050.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BLOWER FIB
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP General Machine Products 89003 Tornado Cable Blower Without Power Pack NEW
GMP General Machine Products 89003 Tornado Cable Blower Without Power Pack NEW

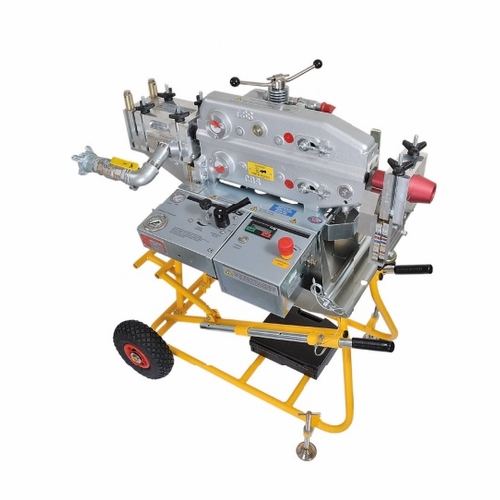

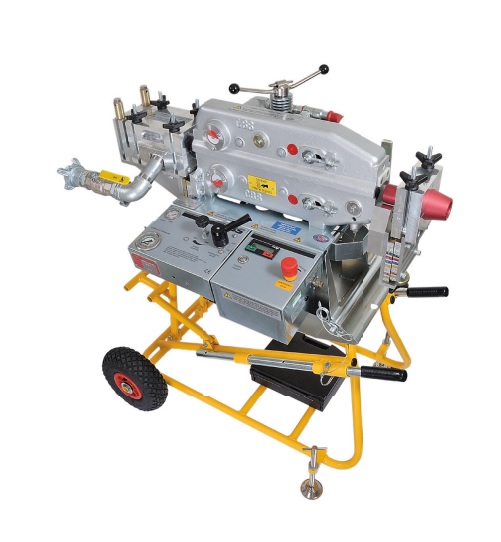

P/N 89003 Tornado Cable Blowing Machine without power pack Includes Standard Cart and one set of duct collets and one set of cable collets and seals
The GMP Tornado (without power pack) is designed to be safe, fast and effective, even on tough terrain. The "Tornado" cable blowing machine will move fiber optic cable of 0.23 to 1.25 in. (5.84-32 mm) diameter at speeds to 300 ft./min. (90 m/min.) into pre-installed innerduct or direct-buried duct. It can accommodate innerduct from .47 to 2.48 in. (12-63 mm).
Operating Capacities Pushing Force: 0-220 lbs. (0-100kg) Pushing Speed: 0-300 ft/min (0-90m/min) Cable Size: .24-1.34" (6-34mm) O.D. Sub - Duct Size: 1/2-2" SDR (12-63mm) O.D.
Pneumatic System Air Hose Bore (min): 1 1/4" (32mm) Operating Pressure: 175 psi (12 bar) Flow: The air supply should be filtered, cooled and dry For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) 0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min) 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min) 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min) 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min) 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min) 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min
GMP General Machine Products 89003 Tornado Cable Blower Without Power Pack NEW
P/N 89003 Tornado Cable Blowing Machine without power pack Includes Standard Cart and one set of duct collets and one set of cable collets and seals
The GMP Tornado (without power pack) is designed to be safe, fast and effective, even on tough terrain. The "Tornado" cable blowing machine will move fiber optic cable of 0.23 to 1.25 in. (5.84-32 mm) diameter at speeds to 300 ft./min. (90 m/min.) into pre-installed innerduct or direct-buried duct. It can accommodate innerduct from .47 to 2.48 in. (12-63 mm).
Operating Capacities Pushing Force: 0-220 lbs. (0-100kg) Pushing Speed: 0-300 ft/min (0-90m/min) Cable Size: .24-1.34" (6-34mm) O.D. Sub - Duct Size: 1/2-2" SDR (12-63mm) O.D.
Pneumatic System Air Hose Bore (min): 1 1/4" (32mm) Operating Pressure: 175 psi (12 bar) Flow: The air supply should be filtered, cooled and dry For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) 0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min) 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min) 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min) 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min) 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min) 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min
