Gmp General Machine Products 89067 Box Junction 1.50 Inch Duct
Available*
Item # 30937578
Model # 89067
$3,321.54
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blower Fib
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
Gmp General Machine Products 89067 Box Junction 1.50 Inch Duct
Gmp General Machine Products 89067 Box Junction 1.50 Inch Duct

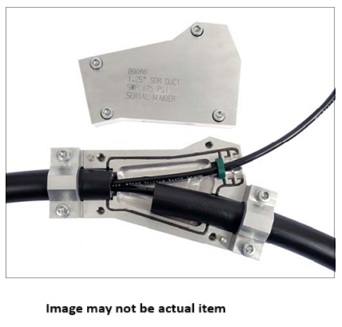

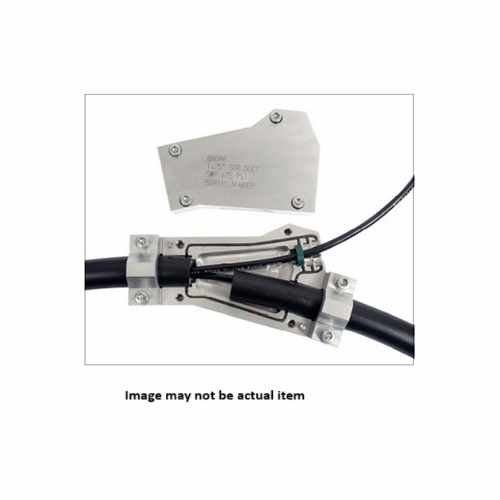

P/N 89067 Gmp General Machine Products Cable Overblowing Junction Box 1.50 Inch Duct
Cable Overblowing Junction Box Available In Three Sizes, The Gmp Cable Overblowing Junction Boxes Have Been Designed To Install A New Cable Or Innerduct Into An Existing Occupied 1-1/4 In., 1-1/2 In. And 2 In. Innerduct (Subject To Space Being Available). The Single Size Junction Box Comprises An Aluminium Base And Lid That Form A Pressurized Air Chamber Into Which One End Of An Existing Occupied Innderduct Can Be Attached. The Existing Cable Can Exit The Box Through An Opening That Has 3 Cable Seal Slots, One Of Which Will House The Seal To Suit The Size Of The Existing Cable. The Third Branch Is Then Connected To A Gmp Cable Blowing Machine Via A Short Slave Length Of Innerduct For The Installation Of The Extra Cable Or Tube(S). A Collection Of Seals Ranging From 7.5 - 20 Mm Included With Junction Box.
Part Number: P/N 89067 Duct Range Limit: 1-1/2 In. Sdr Installation Principle: Viscous Drag Max Operating Pressure: 175 Psi (12 Bar) Length: 12" (305 Mm) Width: 6" (152 Mm) Height: 3" (76 Mm) Weight: 9 Lbs. (4Kg) Min Flow Acceptance: 375 Cfm (10M³/Min)
Gmp General Machine Products 89067 Box Junction 1.50 Inch Duct
P/N 89067 Gmp General Machine Products Cable Overblowing Junction Box 1.50 Inch Duct
Cable Overblowing Junction Box Available In Three Sizes, The Gmp Cable Overblowing Junction Boxes Have Been Designed To Install A New Cable Or Innerduct Into An Existing Occupied 1-1/4 In., 1-1/2 In. And 2 In. Innerduct (Subject To Space Being Available). The Single Size Junction Box Comprises An Aluminium Base And Lid That Form A Pressurized Air Chamber Into Which One End Of An Existing Occupied Innderduct Can Be Attached. The Existing Cable Can Exit The Box Through An Opening That Has 3 Cable Seal Slots, One Of Which Will House The Seal To Suit The Size Of The Existing Cable. The Third Branch Is Then Connected To A Gmp Cable Blowing Machine Via A Short Slave Length Of Innerduct For The Installation Of The Extra Cable Or Tube(S). A Collection Of Seals Ranging From 7.5 - 20 Mm Included With Junction Box.
Part Number: P/N 89067 Duct Range Limit: 1-1/2 In. Sdr Installation Principle: Viscous Drag Max Operating Pressure: 175 Psi (12 Bar) Length: 12" (305 Mm) Width: 6" (152 Mm) Height: 3" (76 Mm) Weight: 9 Lbs. (4Kg) Min Flow Acceptance: 375 Cfm (10M³/Min)
