Gmp General Machine Products 89114 Tornado Max Without Power Pack
Available*
Item # 30937664
Model # 89114
$44,433.72
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blower Fib
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

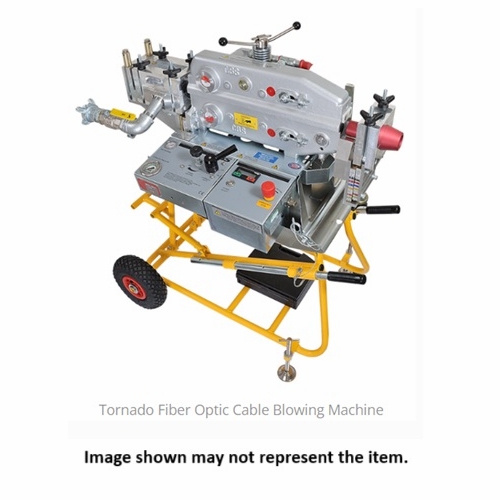

Gmp General Machine Products 89114 Tornado Max Without Power Pack
Gmp General Machine Products 89114 Tornado Max Without Power Pack
P/N 89114 Gmp General Machine Products Tornado Max Without Power Pack
Specifications Operating Capacities Pushing Force: 0-220 Lbs. (0-100Kg) Pushing Speed: 0-300 Ft/Min (0-90M/Min) Cable Size: .24-1.34" (6-34Mm) O.D. Sub - Duct Size: 1/2-2" Sdr (12-63Mm) O.D.
Pneumatic System Air Hose Bore (Min): 1 1/4" (32Mm) Operating Pressure: 175 Psi (12 Bar) Flow: The Air Supply Should Be Filtered, Cooled And Dry For Ducts With An Inner Diameter Of: Minimum Flow Acceptable @175 Psi (12 Bar) 0 Up To 1" (0 Up To 25Mm) : 150 Cfm (4M³/Min) 1 Up To 1 1/8" (26 Up To 30Mm) : 185 Cfm (5M³/Min) 1 1/8 Up To 1 3/8" (31 Up To 35Mm) : 250 Cfm (7M³/Min) 1 3/8 Up To 1 5/8" (36 Up To 40Mm) : 375 Cfm (10M³/Min) 1 5/8 Up To 1 3/4" (41 Up To 44Mm) : 450 Cfm (12M³/Min) 1 3/4 Up To 2" (44 Up To 51Mm): 700 Cfm 19M³/Min
Includes: Tornado Cable Blowing Machine All Sets Of Duct Clamps For Duct Sizes Available All Sets Of Duct Seals For Duct Sizes Available All Sets Of Cable Collets And Guides For Cable Sizes Available All Sets Of Cable Seals All Cable Seal Plugs Modbox™ Mobile Workstation Storage Case Toolkit Manual
Tornado Cable Blowing Machine Klein Tools® Modbox™ Now Included With Tornado Plus And Max Kits.

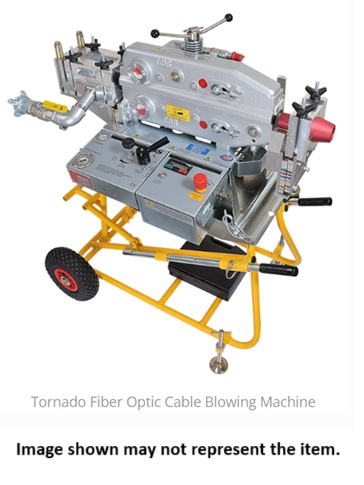

Designed To Be Safe, Fast And Effective, The Tornado Cable Blowing Machine Installs Fiber Optic Cable Into Pre-Installed Innerduct Or Direct Buried Innerduct. A Conversion Kit Allows The Tornado To Place Either 12.7, 12/10Mm Or 10/8Mm Micro Ducts Into Innerduct As Well.
Comprised Of An Aluminum Air Box And Cable Pusher, The Tornado Uses Compressed Air To Install The Cable With Or Without A Missile. In Operation, The Hydraulically Powered, Belt Drive System Controls The Fiber Optic Cable As It Is Propelled By Compressed Air Through The Innerduct. An Electronic Monitoring System Provides Read-Outs Of Speed And Distance, Helps Protect Cable Against Damage, And Includes An Emergency Stop Button.
The Air Box And Cable Pusher Are Mounted On A Lightweight, Tubular-Steel Frame That Can Be Tilted At A 30-Degree Angle To The Manhole, Which Significantly Minimizes Any Bending Of The Innerduct And Cable. The Frame Has Retractable Handles To Permit Ease Of Maneuverability, And Adjustable Rear Legs That Provide Added Stability On Uneven Terrain. This Unit Comes Complete With A Gasoline Engine Powered Hydraulic Power Pack.
Now Included With Your Plus And Max Tornado Blowing Machines Is The Klein Tools® Modbox™ Mobile Workstation. The Rolling Case Is Able To Safely Carry All Your Supplied Accessories And More. The Cases Are Made With Impact Resistant Polymers, Ip65 Rated For Protection Against Debris And Rain, And Can Withstand A 250-Pound (113.4 Kg) Carrying Capacity. They Are Stackable And Lock In Place. Built-In Side Rails Accommodate A Variety Of Attachments. You Can Also Purchase These Boxes Separately To Complement Your Existing Tornado.
Gmp General Machine Products 89114 Tornado Max Without Power Pack
P/N 89114 Gmp General Machine Products Tornado Max Without Power Pack
Specifications Operating Capacities Pushing Force: 0-220 Lbs. (0-100Kg) Pushing Speed: 0-300 Ft/Min (0-90M/Min) Cable Size: .24-1.34" (6-34Mm) O.D. Sub - Duct Size: 1/2-2" Sdr (12-63Mm) O.D.
Pneumatic System Air Hose Bore (Min): 1 1/4" (32Mm) Operating Pressure: 175 Psi (12 Bar) Flow: The Air Supply Should Be Filtered, Cooled And Dry For Ducts With An Inner Diameter Of: Minimum Flow Acceptable @175 Psi (12 Bar) 0 Up To 1" (0 Up To 25Mm) : 150 Cfm (4M³/Min) 1 Up To 1 1/8" (26 Up To 30Mm) : 185 Cfm (5M³/Min) 1 1/8 Up To 1 3/8" (31 Up To 35Mm) : 250 Cfm (7M³/Min) 1 3/8 Up To 1 5/8" (36 Up To 40Mm) : 375 Cfm (10M³/Min) 1 5/8 Up To 1 3/4" (41 Up To 44Mm) : 450 Cfm (12M³/Min) 1 3/4 Up To 2" (44 Up To 51Mm): 700 Cfm 19M³/Min
Includes: Tornado Cable Blowing Machine All Sets Of Duct Clamps For Duct Sizes Available All Sets Of Duct Seals For Duct Sizes Available All Sets Of Cable Collets And Guides For Cable Sizes Available All Sets Of Cable Seals All Cable Seal Plugs Modbox™ Mobile Workstation Storage Case Toolkit Manual
Tornado Cable Blowing Machine Klein Tools® Modbox™ Now Included With Tornado Plus And Max Kits.
Designed To Be Safe, Fast And Effective, The Tornado Cable Blowing Machine Installs Fiber Optic Cable Into Pre-Installed Innerduct Or Direct Buried Innerduct. A Conversion Kit Allows The Tornado To Place Either 12.7, 12/10Mm Or 10/8Mm Micro Ducts Into Innerduct As Well.
Comprised Of An Aluminum Air Box And Cable Pusher, The Tornado Uses Compressed Air To Install The Cable With Or Without A Missile. In Operation, The Hydraulically Powered, Belt Drive System Controls The Fiber Optic Cable As It Is Propelled By Compressed Air Through The Innerduct. An Electronic Monitoring System Provides Read-Outs Of Speed And Distance, Helps Protect Cable Against Damage, And Includes An Emergency Stop Button.
The Air Box And Cable Pusher Are Mounted On A Lightweight, Tubular-Steel Frame That Can Be Tilted At A 30-Degree Angle To The Manhole, Which Significantly Minimizes Any Bending Of The Innerduct And Cable. The Frame Has Retractable Handles To Permit Ease Of Maneuverability, And Adjustable Rear Legs That Provide Added Stability On Uneven Terrain. This Unit Comes Complete With A Gasoline Engine Powered Hydraulic Power Pack.
Now Included With Your Plus And Max Tornado Blowing Machines Is The Klein Tools® Modbox™ Mobile Workstation. The Rolling Case Is Able To Safely Carry All Your Supplied Accessories And More. The Cases Are Made With Impact Resistant Polymers, Ip65 Rated For Protection Against Debris And Rain, And Can Withstand A 250-Pound (113.4 Kg) Carrying Capacity. They Are Stackable And Lock In Place. Built-In Side Rails Accommodate A Variety Of Attachments. You Can Also Purchase These Boxes Separately To Complement Your Existing Tornado.
