GMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROL
Available*
Item # 30956600
Model # 89600
$5,626.45
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TUGGERS
Tools
Line Construction- Placing
Puller- Tuggers- Winches
GMP General Machine Products
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROL
GMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROL

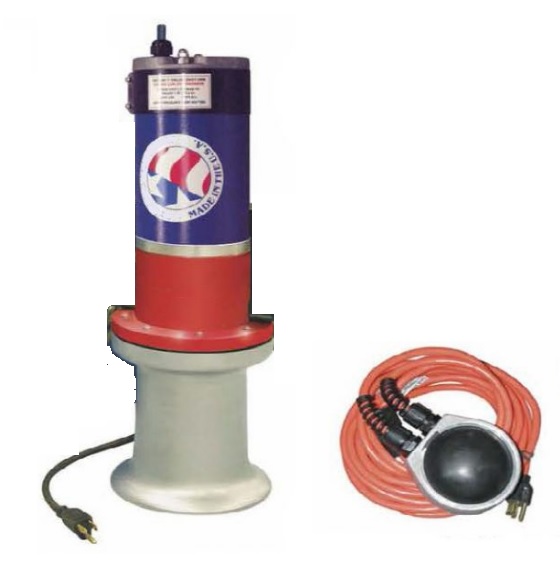

P/N 89600 Electric Capstan Hoist and Foot Switch 1,000 lb. (454kg) capacity Weight 48 lbs. (21.7kg)
This versatile 1,000 lb. (454kg) capstan is the perfect partner for overhead and underground lifting and pulling applications. The unit is small and lightweight, making it perfect for use in remote and limited access areas.
Safety Features: 1,000 lb. (454kg) capacity Lightweight (only 38 lbs. (17kg) w/o universal bracket) Power Source: 115 Volt AC 40 ft./min. (12.2 m/min) Rope Speed Remote Foot Control Switch included Steel capstan drum with larger radius at load-line wrap and zinc-plated rope surface
Simplify Heavy Tasks: Raising Transformers Hoisting Heavy Insulators Stringing and Tensioning Setting Utility Poles Pulling Underground Cable
Ordering Information: P/N Description Weight 89600 Electric Capstan Hoist and Foot Switch 48 lbs. (21.7kg) 89620 Steel Storage Case 36 lbs. (16.3kg) 89621 Rope Lock Device 2 lbs. (.91kg) 89622 Universal Bracket 26 lbs. (11.7kg) 89610 ** Electric Capsan Hoist Kit 112 lbs. (51kg)
GMP General Machine Products 89600 WINCH CAPSTAN 1000 lb WITH FOOT CONTROL
P/N 89600 Electric Capstan Hoist and Foot Switch 1,000 lb. (454kg) capacity Weight 48 lbs. (21.7kg)
This versatile 1,000 lb. (454kg) capstan is the perfect partner for overhead and underground lifting and pulling applications. The unit is small and lightweight, making it perfect for use in remote and limited access areas.
Safety Features: 1,000 lb. (454kg) capacity Lightweight (only 38 lbs. (17kg) w/o universal bracket) Power Source: 115 Volt AC 40 ft./min. (12.2 m/min) Rope Speed Remote Foot Control Switch included Steel capstan drum with larger radius at load-line wrap and zinc-plated rope surface
Simplify Heavy Tasks: Raising Transformers Hoisting Heavy Insulators Stringing and Tensioning Setting Utility Poles Pulling Underground Cable
Ordering Information: P/N Description Weight 89600 Electric Capstan Hoist and Foot Switch 48 lbs. (21.7kg) 89620 Steel Storage Case 36 lbs. (16.3kg) 89621 Rope Lock Device 2 lbs. (.91kg) 89622 Universal Bracket 26 lbs. (11.7kg) 89610 ** Electric Capsan Hoist Kit 112 lbs. (51kg)
