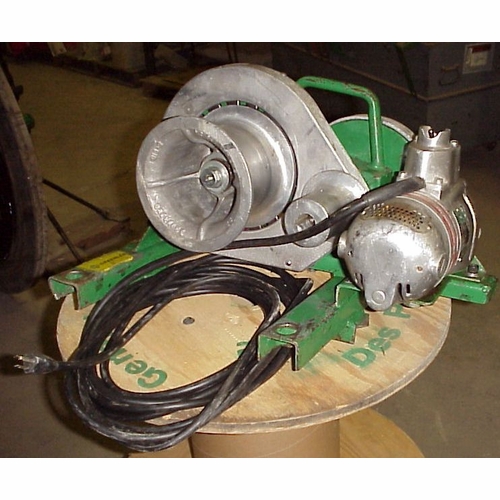

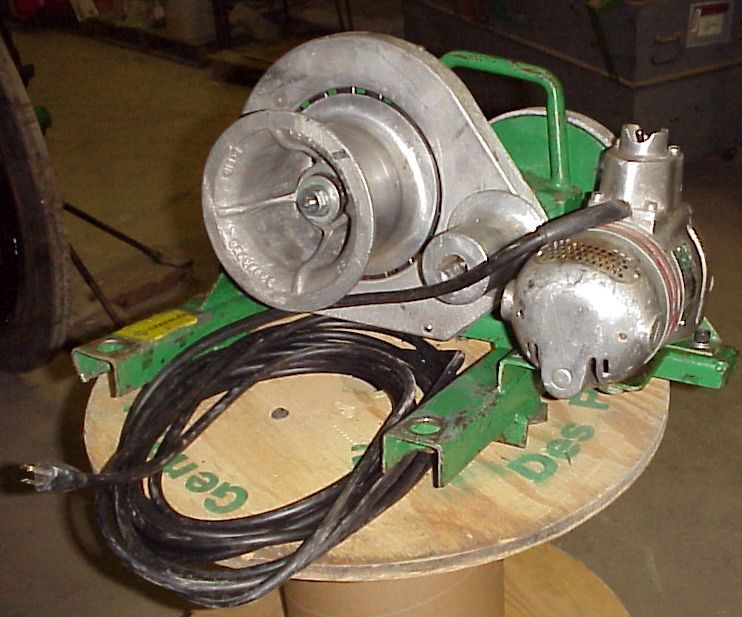

Greenlee 640 Tugger 4000 Lb Repaired
Available*
Item # 30959000
Model # 640 -R
$2,025.00
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
Greenlee Textron
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GREENLEE 640 TUGGER 4000 lb REPAIRED 4000 lb TUGGER only
Cable Puller: 4000 lb. rated An economical puller with enough power for most jobs. Lighter weight for easier mounting in tough applications. Leaf type mounting chains won’t twist when tightening. Unique floor mounting attachment for quick reliable setup. Right angle sheave allows the operator to stand out of the direct line of force. Audio alarm high force warning and circuit breaker shut off at maximum force for equipment protection and added safety. Tapered capstan and patented rope guidance system for better control of rope. Patented. Optional Force Gauge Cat. No. UPC No. Description 640 35300 Tugger® Cable Puller Power Unit.
SPECIFICATIONS Dimensions: Length – 21" (533 mm), Width – 21" (533 mm), Height – 12" (305 mm) Pulling Force: Maximum – 4,000 lbs. (17.9 kN) Continuous – 2,500 lbs. (11.1 kN) Weight: 640, 640-22 – 82 lbs. (38 kg) Pulling Speed - Feet (Meters) Per Minute No Load – 35 (10.67), At 2000 lbs. (8.8 kN) – 16 (4.87) At 4000 lbs. (17.9 kN) – 6 (1.83) Power 1 HP (746 W) – 120 VAC , 1 HP (746 W) – 220 VAC 50HZ
Cable Puller: 4000 lb. rated An economical puller with enough power for most jobs. Lighter weight for easier mounting in tough applications. Leaf type mounting chains won’t twist when tightening. Unique floor mounting attachment for quick reliable setup. Right angle sheave allows the operator to stand out of the direct line of force. Audio alarm high force warning and circuit breaker shut off at maximum force for equipment protection and added safety. Tapered capstan and patented rope guidance system for better control of rope. Patented. Optional Force Gauge Cat. No. UPC No. Description 640 35300 Tugger® Cable Puller Power Unit.
SPECIFICATIONS Dimensions: Length – 21" (533 mm), Width – 21" (533 mm), Height – 12" (305 mm) Pulling Force: Maximum – 4,000 lbs. (17.9 kN) Continuous – 2,500 lbs. (11.1 kN) Weight: 640, 640-22 – 82 lbs. (38 kg) Pulling Speed - Feet (Meters) Per Minute No Load – 35 (10.67), At 2000 lbs. (8.8 kN) – 16 (4.87) At 4000 lbs. (17.9 kN) – 6 (1.83) Power 1 HP (746 W) – 120 VAC , 1 HP (746 W) – 220 VAC 50HZ
