GMP 89004 POWERED DUCT ROD PUSHER (DUCT RODDER SOLD SEPARATELY)
GMP 89004 POWERED DUCT ROD PUSHER (DUCT RODDER SOLD SEPARATELY)

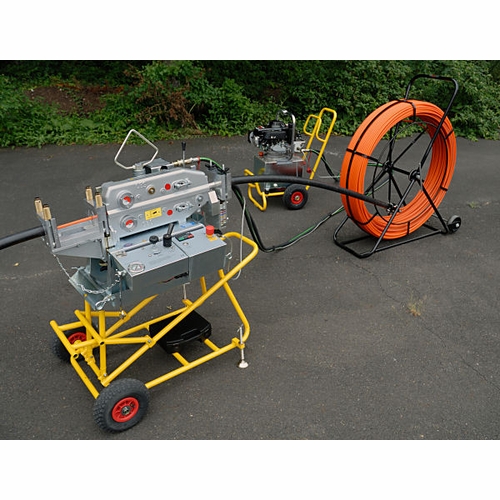

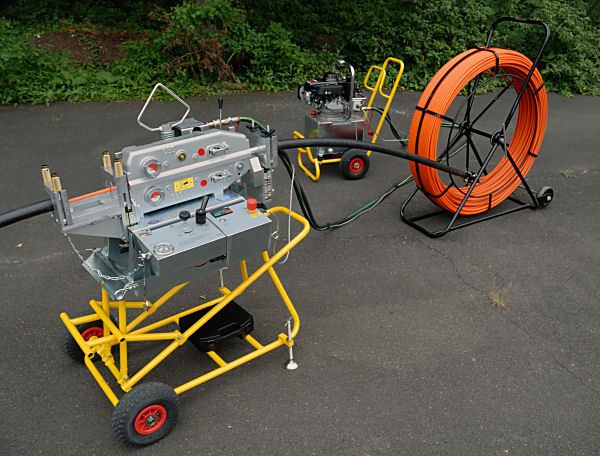

GMP 89004 Portable Powered Duct Rod Pusher (Duct Rodder Sold Separately) Weight 210 lbs. (95kg.)
- Designed to work with a GMP 1/2 in. Duct Rodder. - Operations and Maintenance Manual Power Pack Manual - Hydraulically powers GMP 1/2 in. Duct Rodders in to and out of conduits. - Pushes and pulls with forces up to 300 lbs. - Rod speeds up to 130 ft/min (40 meters/min) - Accurately measures footage and speed with an electronic monitoring system that works in either direction. - The readout can be scaled to feet or meters. - When pulling back, the fiberglass rod is placed directly back onto the cassette. - Features rod access areas for wiping the rod clean during the pull back operation. - Also comes with a package of rod wiper pads (P/N 32290) Duct Clamp on the machine, and the specially designed Duct Mounting Clamp Assembly (P/N 32221) provided on the rodder cassette, help stabilize both pieces of equipment during use. Comes with a gasoline driven power pack and hoses. - Pusher is mounted on a lightweight, brightly painted, tubular-steel frame that can be tilted at a 30-degree angle to the manhole to reduce initial bending of the fiberglass rod. - Must order 1/2 in. Duct Rodder Separately. Also, user must provide length of 1 1/4 in. innerduct between Rod Pusher and Rodder Cassette, and another length of 1 1/4 in. innerduct between the pusher and the duct to be rodded. - Included with pusher is a gasoline hydraulic power pack.
- P/N 89004 (calibration in feet) - P/N 89005 (calibration in meters) - Weight: Duct Rod Pusher 210 lbs. (95 kgs.) - Power Pack 154 lbs. - P/N 89191 Replacement Drive Belt Each (2 required) 3.36 lbs. (1.54kg) - P/N 89387 Innerduct Attachment Tool 15 lbs. (6.8kg)
