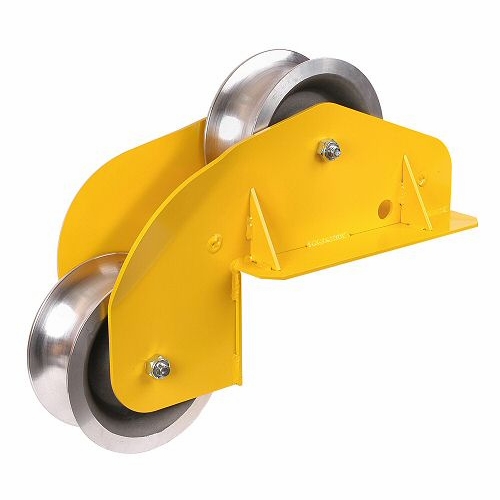

GMP 70284 4 inch MANHOLE SHEAVE- LIP ROLLER SHIPS LTL FREIGHT
Available*
Item # 31365000
Model # 70284
$1,832.42
financing available. Learn More
* Notes on Availability:
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
BLOCKS
Tools
Line Construction- Placing
Blocks-Placing-Prelashing- Overlashing
GMP General Machine Products
Corner Blocks-Lip Rollers-90 degree Blocks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

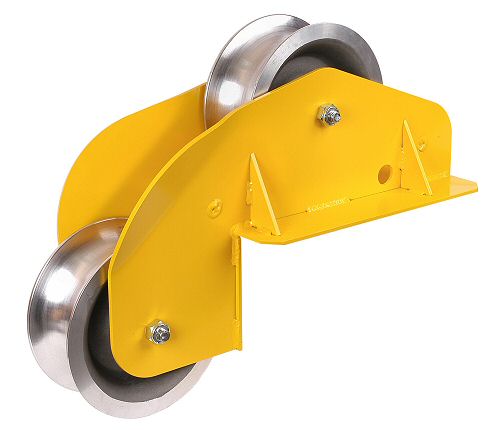

GENERAL MACHINE PRODUCTS 70284 4" MANHOLE SHEAVE- LIP ROLLER NEW
The Manhole Sheave or "Pittsburgh" is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly.
Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheaves
The frame also has a hole in each side plate so you can insert a 1 1/4 in. (32 mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manhole
Approximate overall unit dimensions: 30 in. (762 mm) L x 12 in. (305 mm) W x 22 in. (559 mm) H
Sheaves are available to accommodate cable up to 3 in. (76 mm), 4 in. (100 mm) or 5 in. (130 mm) diameters
Standard units are rated at 36,000 lbs. (16 kN) The 80975 heavy duty 5 in. model is rated for 45,000 lbs. (20 kN)
Ordering Information: P/N Max. Cable Diameter Weight
--------------------------------------------------------------------------------
70283 3 in. Manhole Sheave 32 lbs. (14 kgs) 70284 4 in. Manhole Sheave 55 lbs. (24 kgs) 70285 5 in. Manhole Sheave 65 lbs. (29 kgs) 80975 5 in. (Heavy Duty) 65 lbs. (29 kgs)
***SHIPS LTL FREIGHT***
The Manhole Sheave or "Pittsburgh" is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly.
Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheaves
The frame also has a hole in each side plate so you can insert a 1 1/4 in. (32 mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manhole
Approximate overall unit dimensions: 30 in. (762 mm) L x 12 in. (305 mm) W x 22 in. (559 mm) H
Sheaves are available to accommodate cable up to 3 in. (76 mm), 4 in. (100 mm) or 5 in. (130 mm) diameters
Standard units are rated at 36,000 lbs. (16 kN) The 80975 heavy duty 5 in. model is rated for 45,000 lbs. (20 kN)
Ordering Information: P/N Max. Cable Diameter Weight
--------------------------------------------------------------------------------
70283 3 in. Manhole Sheave 32 lbs. (14 kgs) 70284 4 in. Manhole Sheave 55 lbs. (24 kgs) 70285 5 in. Manhole Sheave 65 lbs. (29 kgs) 80975 5 in. (Heavy Duty) 65 lbs. (29 kgs)
***SHIPS LTL FREIGHT***
