PELSUE BA48 DAVIT OFFSET ARM, ALUM., W/PULLEY & U-BRACKET, 42 inches /48 inches OFFSET REACH

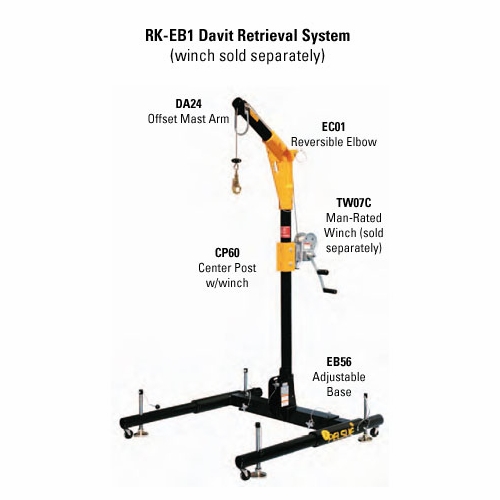

PELSUE DA48 DAVIT OFFSET ARM, ALUM., W/PULLEY & U-BRACKET, 42”/48” OFFSET REACH NEW Our component based davit assembly can be mated with many styles of bases. The mast consists of an aluminum offset tube, fabricated aluminum elbow section, and aluminum center post with winch mounting bracket. Cast aluminum elbow units are reversible and provide cost effective, versatile means of achieving multiple offset reaches. Assemblies are offered as adjustable offset units capable of either an 18”/24” or 30”/36” or 42”/48” offset reach. All davits are man rated to 350 lbs. and offer a universal bracket for attachment of alternate lifting systems and/or 900 lb. MAF fall arrest devices. Assembly provides locations for up to two winch mounting plates. One winch mounting plate of the user’s choice is provided with assembly.

For information on winches, please go here.

Specifications:

Model # Length Weight CP60 60” Center Post w/winch bracket (26 Lbs)

EF01 Fabricated Elbow - reversible (10 Lbs)

DA24 18”/24” Offset Mast - arm only (7 Lbs)

DA36 30”/36” Offset Mast - arm only (10 Lbs)

DA48 42”/48” Offset Mast - arm only (12 Lbs) DK1824 18”/24” Offset Mast, Rev. Elbow, & Center Post

DK3036 30”/36” Offset Mast, Rev. Elbow, & Center Post

DK4248 42”/48” Offset Mast, Rev. Elbow, & Center Post

EB56 Base - expandable from 36” to 56” ID (100 lbs)

EB66 Base - expandable from 46” to 66” ID (115 lbs)
